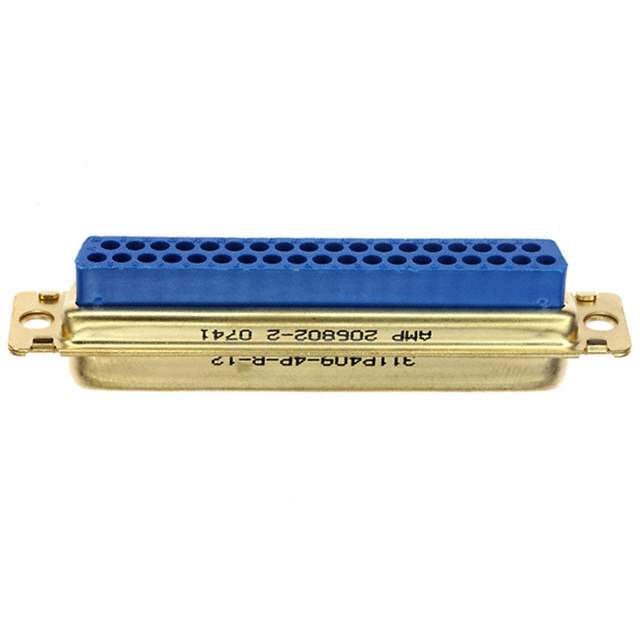

206802-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Housings
Manufacturer TE Connectivity Aerospace, Defense and Marine
Packaging Bulk
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 37
Number of Rows 2
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Mounting Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Brass, Gold Plated
Dielectric Material Polyester, Glass Filled
Color Blue
Note Contacts Not Included
Base Product Number 206802
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number A34497,2068022,206802-2-ND
Standard Package 1
Win Source Part Number 1333215-206802-2
Ultra Librarian 3D Model Ultra Librarian 206802-2 CAD Model

Description

TE Connectivity Aerospace, Defense and Marine 1333215-206802-2 is a blue colored D-sub connector housing designed for plug male contacts.

  • Positions: 37
  • Row Design: Dual row
  • Series: 206802
  • Connector Housing Material: Brass
  • Contact Finish: Gold plating
  • Mounting: Free hanging (in-line)
  • Housing/Shell Feature: Unthreaded flange
  • RoHS3 Compliant: Yes
  • Packaging: Bulk
  • Standard Package: 1 unit
