Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>Centronics Connectors
Mfr 3M
Series 102, Mini D Ribbon (MDR)
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 36
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Type -
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10236
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1380476-10236-55G3PC
Ultra Librarian 3D Model Ultra Librarian 10236-55G3PC CAD Model

Description

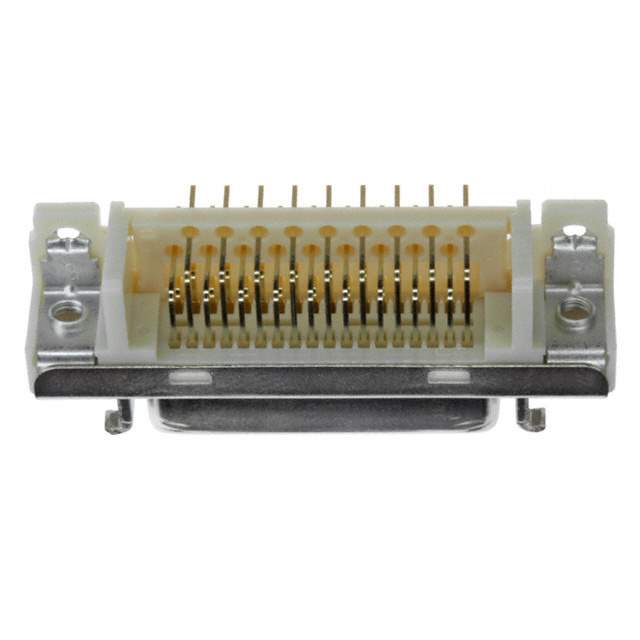

The 3M 10236 series is a centronics connector with a receptacle type.

  • Series: 10236
  • Type: Centronics Connector
  • Connector Type: Receptacle
  • Positions: 36
  • Features: Board Lock and Shielded
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Packaging: Tray
  • Standard Package: 100 pieces
  • Series: mini d ribbon (MDR)
  • Category: Connectors, Interconnects
  • REACH Compliant: Unaffected
  • ECCN: EAR99
