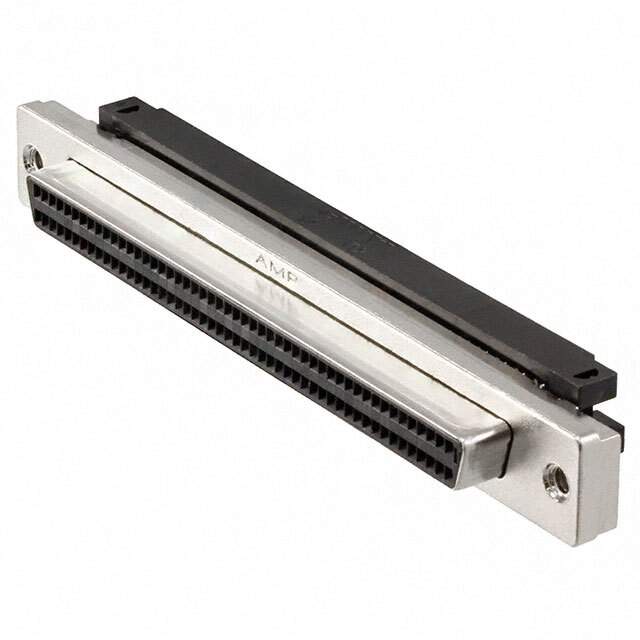

Same model may have multiple batches, images only for reference.

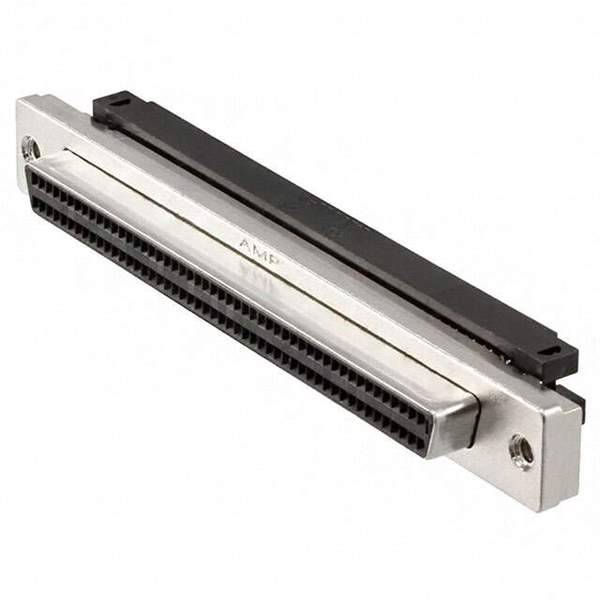

5-749877-9 Real Image
Same model may have multiple batches, images only for reference.

5-749877-9

Part No 5-749877-9
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-TYPE RCPT 100POS PNL MNT
Datasheet
5-749877-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 100
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (4-40)
Termination IDC, Ribbon Cable
Features Terminating Cover
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 30V
Current Rating 1A
Color Black
Housing Material Thermoplastic
Contact Material Phosphor Bronze
Win Source Part Number 764068-5-749877-9
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5-749877-9 CAD Model

Description

The TE Connectivity AMP Connectors 764068-5-749877-9 is a female socket receptacle connector from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE .050 III
  • Positions: 100
  • Color: Black
  • Features: Terminating Cover
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Shell Material: Steel
  • Shell Finish: Nickel Plated
  • Packaging: Tube
