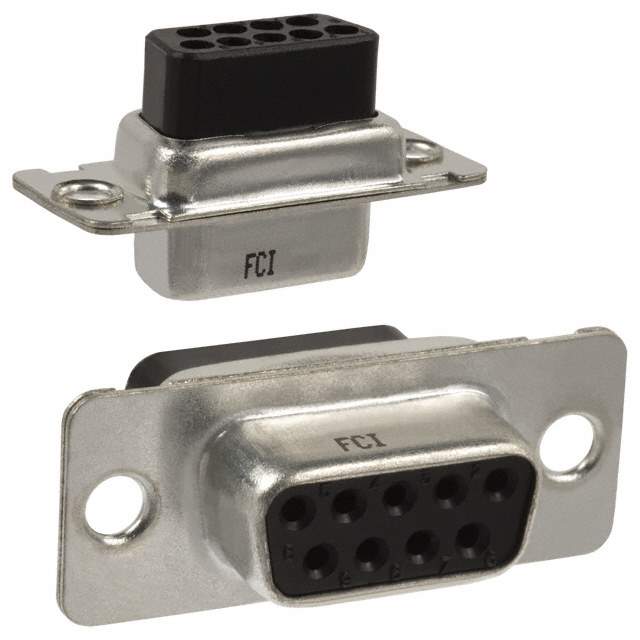

865609SLTLF Real Image
Same model may have multiple batches, images only for reference.

865609SLTLF

Part No 865609SLTLF
Manufacturer Amphenol
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HOUSING RCPT 9POS / Receptacle for Female Contacts Housing D-Sub Connector 9 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Housings
Manufacturer Amphenol ICC (FCI)
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Tin/Zinc Plated
Temperature Range - Operating -55°C ~ 125°C
Mating Cycles 200
Dielectric Material Thermoplastic
Note Contacts Not Included
Base Product Number 865609
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 609-1467,2266-865609SLTLF
Standard Package 315
Win Source Part Number 1333217-865609SLTLF
Ultra Librarian 3D Model Ultra Librarian 865609SLTLF CAD Model

Description

This D-sub connector housing is manufactured by Amphenol ICC (FCI) and has a part number of 1333217-865609SLTLF.

  • Connector Type: Receptacle for female contacts
  • Positions: 9
  • Rows: 2
  • Contacts Included: No
  • Contact Type: Signal
  • Dielectric Material: Thermoplastic
  • Mounting: Panel Mount
  • Housing/Shell Flange Feature: Unthreaded
  • Shell Material: Steel
  • Shell Plating: Tin/Zinc Plated
  • Mating Cycle: 200
  • Shell Size: 1 (DE, E)
  • Operating Temperature Range: -55 to 125 degrees Celsius
  • RoHS Compliant: Yes
