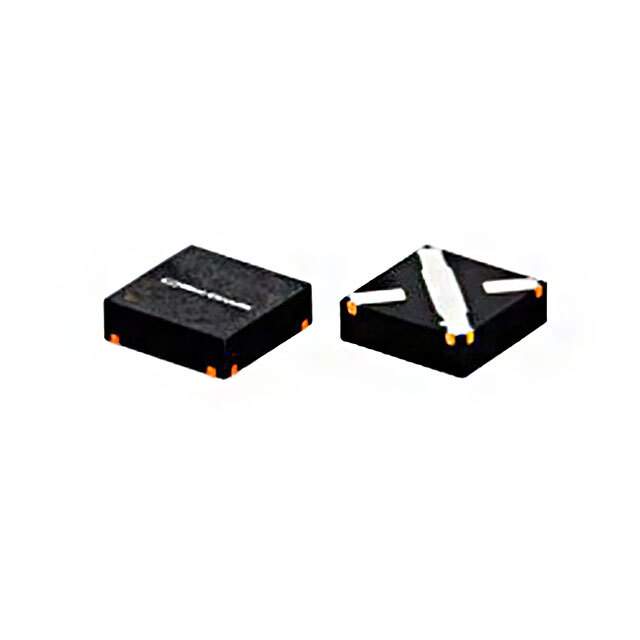

LHA-1H+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Frequency 50MHz ~ 6GHz
P1dB 22.9dBm
Gain 12.2dB
Noise Figure 2.5dB
RF Type CATV, DBS, LTE, MMDS, Wireless LAN
Voltage - Supply 4V, 4.5V, 5V
Current - Supply 145mA
Test Frequency 4GHz
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Supplier Device Package FG873
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Other Names 3157-LHA-1H+TR,3157-LHA-1H+DKR,3157-LHA-1H+CT
Standard Package 500
Win Source Part Number 1069686-LHA-1H+
Ultra Librarian 3D Model Ultra Librarian LHA-1H+ CAD Model

Description

The 1069686-LHA-1H+ is an RF amplifier that belongs to the RF/IF and RFID category.

  • Gain: 12.2dB
  • Noise Figure: 2.5dB
  • Test Frequency: 4GHz
  • Frequency Range: 50MHz to 6GHz
  • Current Supply: 145mA
  • P1dB: 22.9dBm
  • Applications: Suitable for CATV, DBS, LTE, MMDS, and Wireless LAN applications
  • Voltage Supply: 4V, 4.5V, and 5V
  • Package: 4-SMD, No Lead
  • Supplier Device Package: FG873
  • Alternative Part: Available with a cross-reference of LHA-1H+LHA1H+
