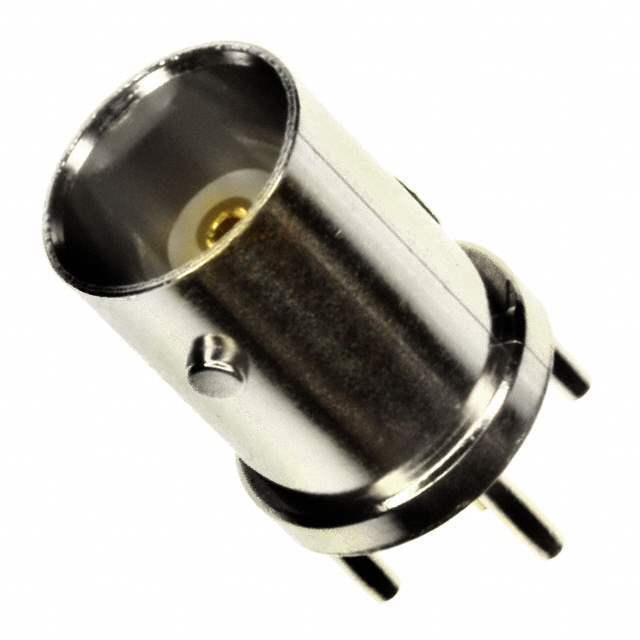

5-1634503-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5-1634503-1

Part No 5-1634503-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK STR 50 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201256-5-1634503-1
Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Series ZDC, Greenpar
Package Bulk
Product Status Obsolete
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Ultra Librarian 3D Model Ultra Librarian 5-1634503-1 CAD Model

Description

The ZDC series from TE Connectivity AMP Connectors is a BNC coaxial connector assembly.

  • Series: ZDC
  • Connector Type: Jack
  • Gender: Female Socket
  • Impedance: 50 Ohms
  • Termination Style: Solder
  • Packaging: Bulk
  • Connector Style: BNC
  • Product Status: Obsolete
