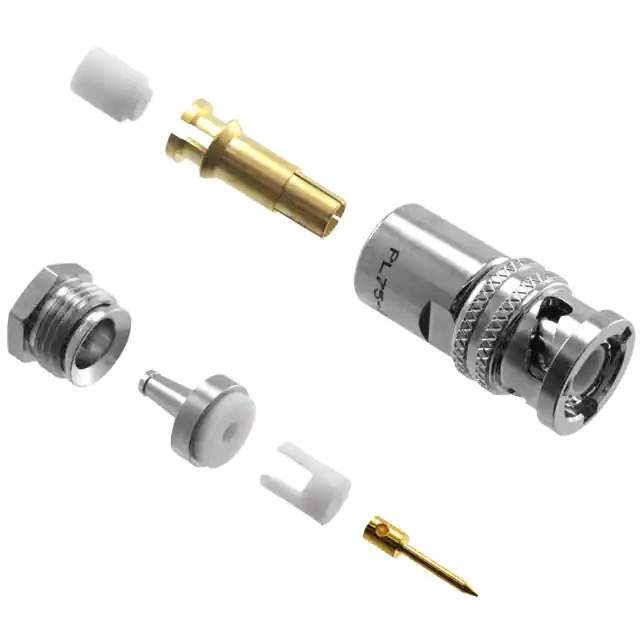

PL75-47 Real Image
Same model may have multiple batches, images only for reference.

PL75-47

Part No PL75-47
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN TRB PLUG STR SOLDER / TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
Datasheet
PL75-47 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Cinch Connectivity Solutions
Series 70
Package Bulk
Product Status Active
Connector Style TRB, Twinaxial/Triaxial
Connector Type Plug, Male Pin (Concentric)
Contact Termination Solder
Shield Termination Wrench Clamp
Impedance Non-Constant
Mounting Type Free Hanging (In-Line)
Cable Group M17/176-00002
Fastening Type Bayonet Lock
Frequency - Max 500 MHz
Number of Ports 1
Features Three Lug
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 400 V
Mating Cycles 500
Base Product Number PL75
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 930689-PL75-47
Ultra Librarian 3D Model Ultra Librarian PL75-47 CAD Model

Description

The Cinch Connectivity Solutions 930689-PL75-47 is a coaxial connector assembly.

  • Series: 70
  • Design: Three-lug
  • Connector Type: Male Plug
  • Fastening Type: Bayonet Lock
  • Package: Bulk
  • Contact Termination: Solder
  • Connector Style: TRB, Twinaxial/Triaxial
  • Voltage Rating: 400 V
  • Maximum Frequency: 500 MHz
  • Housing Color: Silver
  • Port: 1
  • Standard Package: 1,000 pieces
  • Impedance: Non-constant
  • Material: Brass
  • Shield Termination: Wrench Clamp
  • Cable Group: M17/176-00002
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper with Gold Plating
  • Mounting: Free Hanging (In-Line)
  • Operating Temperature: -65°C to 165°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4010
