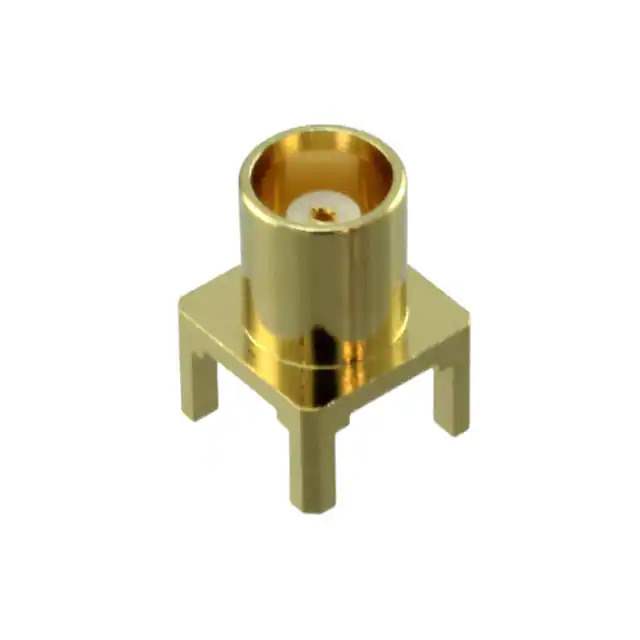

Same model may have multiple batches, images only for reference.

MCX-J-P-H-ST-MT1

Name: MCX-J-P-H-ST-MT1
Brand: Samtec Inc.
SKU: 926849
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MCX-J-P-H-ST-MT1
Manufacturer	Samtec Inc.
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN MCX JACK STR 50 OHM SMT / MCX Connector Jack, Female Socket 50Ohm Surface Mount, Through Hole Solder
Datasheet	MCX-J-P-H-ST-MT1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr	Samtec Inc.
Package	Bulk
Product Status	Active
Connector Style	MCX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Surface Mount, Through Hole
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Copper Alloy
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 125°C
Base Product Number	MCX-J
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
California Prop 65	Warning Information
Win Source Part Number	926849-MCX-J-P-H-ST-MT1
Ultra Librarian 3D Model	Ultra Librarian MCX-J-P-H-ST-MT1 CAD Model

Alternative Products

Description

The MCX-J-P-H-ST-MT1 connector is a high-quality coaxial connector assembly suitable for RF applications.

Connector Type: Jack, Female Socket
Fastening Type: Snap-on
Housing Color: Gold
Body Material: Brass
Maximum Frequency: 6 GHz
Impedance: 50Ohm
Mounting Type: Surface Mount or Through-Hole
Operating Temperature Range: -65°C to 125°C
Manufacturer: Samtec Inc.
Product Status: Active
Compliance: California Prop 65 compliant
