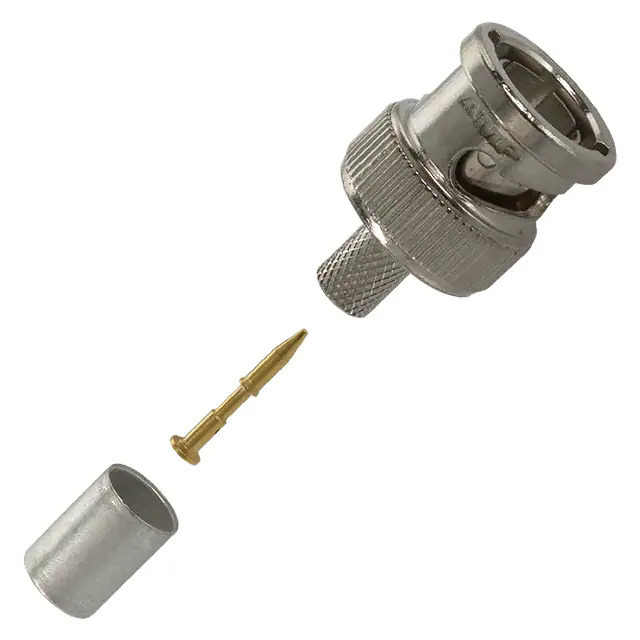

5413589-2 TE Connectivity
Same model may have multiple batches, images only for reference.

5413589-2

Part No 5413589-2
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC PLUG STR 75 OHM CRIMP / BNC Connector Plug, Male Pin 75Ohm Free Hanging (In-Line) Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Obsolete
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 75Ohm
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Cable Group RG-59, 59A, 59B
Fastening Type Bayonet Lock
Frequency - Max 2 GHz
Number of Ports 1
Features -
Housing Color Silver
Ingress Protection -
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polyethylene (PE)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.15dB
Base Product Number 5413589
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365249-5413589-2
Ultra Librarian 3D Model Ultra Librarian 5413589-2 CAD Model

Description

The 1365249-5413589-2 is a Coaxial Connector Assembly from TE Connectivity AMP Connectors.

  • Mounting Type: Free Hanging (In-Line)
  • Voltage Rating: 500V
  • Connector Type: Plug with male pin contact type
  • Termination Type: Crimp
  • Body Material: Brass
  • Body Finish: Nickel
  • Housing Color: Silver
  • Includes: 3 pieces - 1 connector, 1 contact, and 1 ferrule
  • Impedance: 75Ohm
  • Frequency Range: Up to 2 GHz
  • Connector Style: BNC
