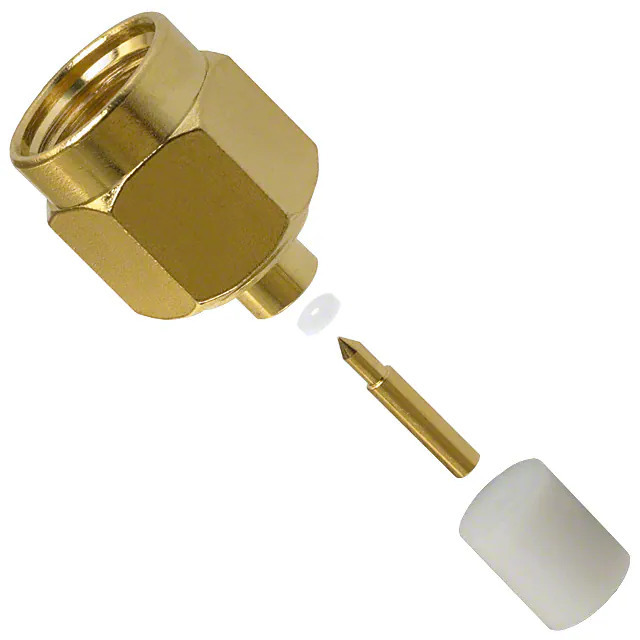

901-9867-RFX Amphenol-RF Division
Same model may have multiple batches, images only for reference.

901-9867-RFX

Part No 901-9867-RFX
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA PLUG STR 50 OHM SOLDER / SMA Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Cable Group RG-405 (.085", .086" Semi Rigid)
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection Weatherproof
Center Contact Material Brass
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss -
Base Product Number 901-98
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365227-901-9867-RFX
Ultra Librarian 3D Model Ultra Librarian 901-9867-RFX CAD Model

Description

The Amphenol RF coaxial connector assembly is designed for RF applications by Amphenol RF.

  • Connector Type: Plug
  • Contact Gender: Male Pins
  • Fastening Type: Threaded
  • Body Material: Brass
  • Body Finish: Gold
  • Impedance: 50Ohm
  • Temperature Range: -65°C to 165°C
  • Mounting Type: Free Hanging (In-Line)
  • Number of Pieces: 4 (Connector, Contact, Ferrule, Insulator)
  • Cable Group: RG-405 (.085", .086" Semi Rigid)
  • Product Status: Active
