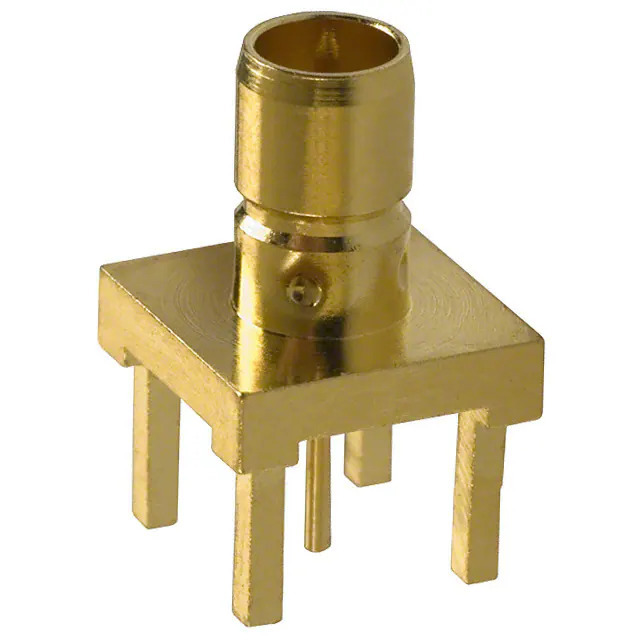

142138-75 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

142138-75

Part No 142138-75
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MINI SMB JACK STR 75OHM PCB / SMB, Mini Connector Jack, Male Pin 75Ohm Through Hole Solder
Datasheet
142138-75 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style SMB, Mini
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Through Hole
Mounting Feature -
Cable Group -
Fastening Type Snap-On
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection -
Center Contact Material Brass
Includes -
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss 0.3dB
Base Product Number 142138
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365237-142138-75
Ultra Librarian 3D Model Ultra Librarian 142138-75 CAD Model

Description

The Amphenol RF coaxial connector assembly is a reliable solution for RF applications.

  • Temperature Range: -65°C to 165°C
  • Mounting Type: Through Hole
  • Fastening Type: Snap-On
  • Impedance: 75 Ohm
  • Connector Style Compatibility: SMB, Mini
  • Body Material: Brass
  • Body Finish: Gold
