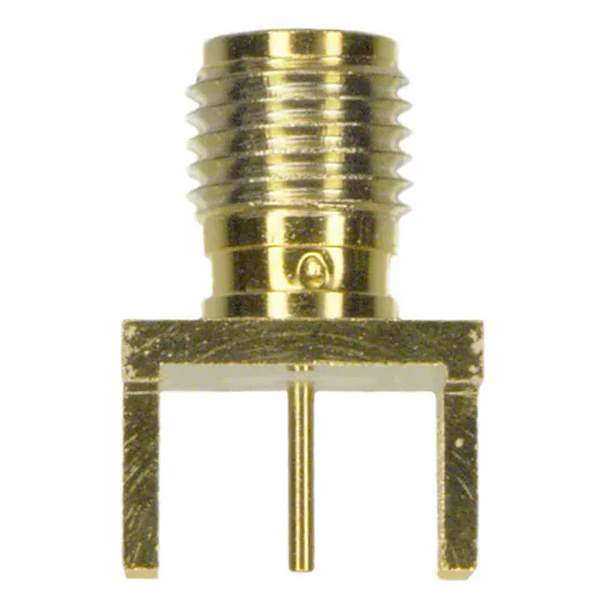

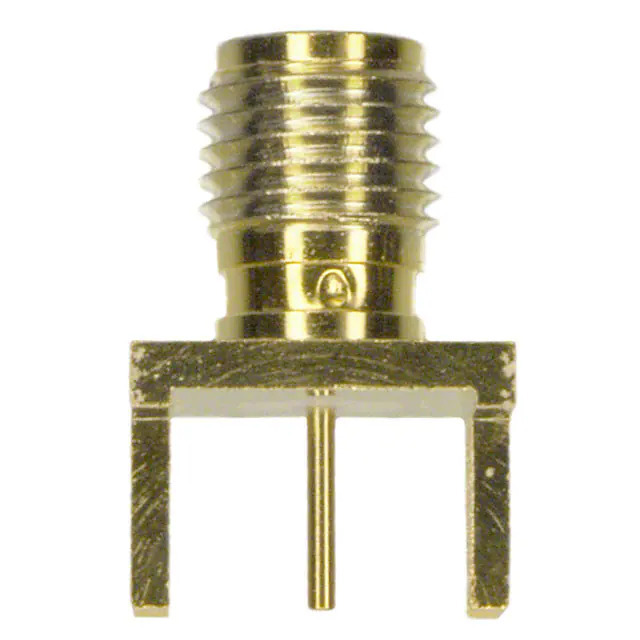

901-10003 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

901-10003

Part No 901-10003
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
901-10003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Mounting Feature -
Cable Group -
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection -
Center Contact Material Beryllium Copper
Includes -
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss -
Base Product Number 901-10
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1352391-901-10003
Ultra Librarian 3D Model Ultra Librarian 901-10003 CAD Model

Description

The Amphenol RF coaxial connector assembly is a reliable solution for RF applications.

  • Temperature Range: -65°C ~ 165°C
  • Mounting Type: Board Edge, End Launch
  • Termination: Solder
  • Fastening Type: Threaded
  • Impedance: 50 Ohm
  • Frequency - Max: 18 GHz
  • Material: Brass
  • Body Finish: Gold
