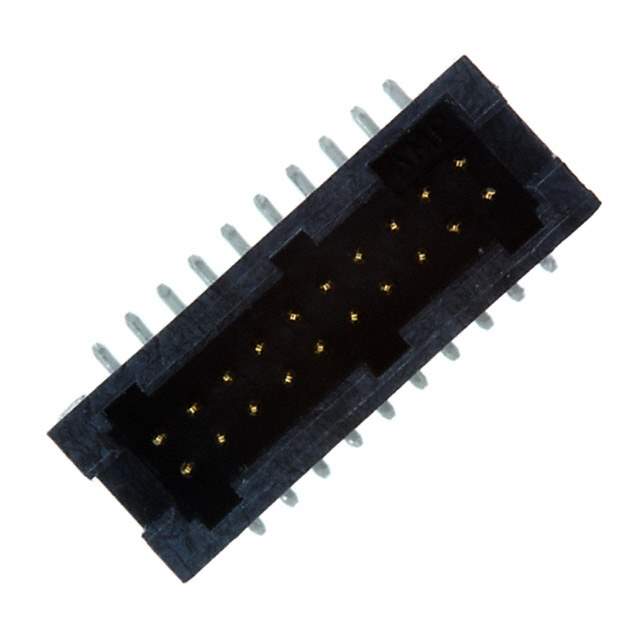

5-104656-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.298" (7.57mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A per Contact
Mated Stacking Heights 8.13mm
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications Automotive, General Purpose, Medical, Military, Telecommunications
Base Product Number 104656
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 51046562,A33536,2266-5-104656-2,-5-104656-2-CSI
Standard Package 33
Win Source Part Number 1332468-5-104656-2
Ultra Librarian 3D Model Ultra Librarian 5-104656-2 CAD Model

Description

The TE Connectivity AMP Connectors 1332468-5-104656-2 is a header type connector that is commonly used in automotive, general purpose, medical, military, and telecommunications applications.

  • Pitch: 0.050"
  • Row Spacing: 0.050"
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin
  • Current Rating: 0.5A per contact
  • Temperature Range: -65°C to 105°C
  • Design: Shrouded - 4 wall
