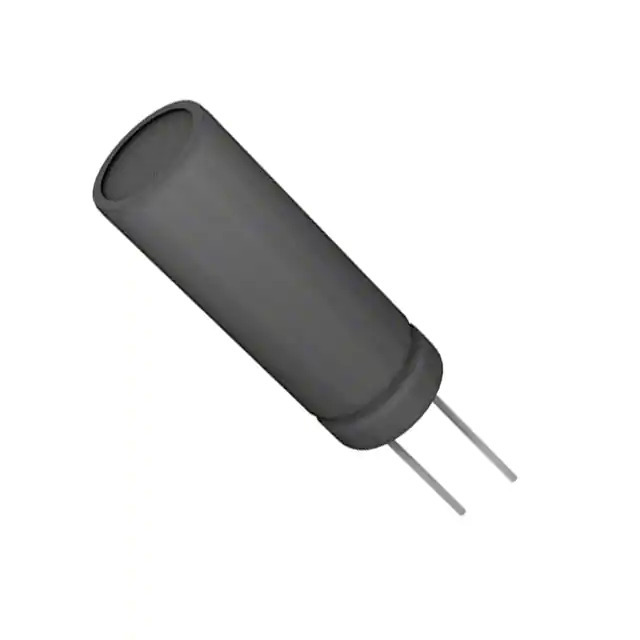

16YXJ220M6.3X11 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357640-16YXJ220M6.3X11
Ultra Librarian 3D Model Ultra Librarian 16YXJ220M6.3X11 CAD Model

Description

The 16YXJ220M6.3X11 is an aluminum electrolytic capacitor designed for use in various electronic circuits. Manufactured by Rubycon, a reputable brand in the industry, this capacitor is part of the YXJ series.

  • Series: YXJ series
  • Capacitance: 220μF
  • Voltage Rating: 16V
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 280mA @ 120Hz
  • Ripple Current @ High Frequency: 400mA @ 100kHz
  • Mounting Style: Radial, Can
  • Diameter: 6.30mm
  • Height: 12.50mm
  • Lifetime: 7000 hours @ 105°C
