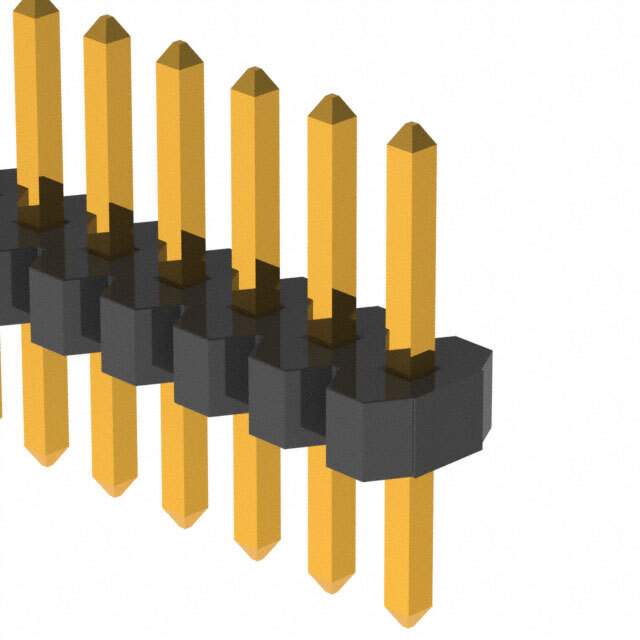

Same model may have multiple batches, images only for reference.

GRPB081VWVN-RC

Name: GRPB081VWVN-RC
Brand: Sullins Connector Solutions
SKU: 1349702
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	GRPB081VWVN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 1.27MM / Connector Header Through Hole 8 position 0.050" (1.27mm)
Datasheet	GRPB081VWVN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.091" (2.30mm)
Overall Contact Length	0.248" (6.30mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA9T) , Nylon 9T
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness - Post	Flash
Base Product Number	GRPB081
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349702-GRPB081VWVN-RC
Ultra Librarian 3D Model	Ultra Librarian GRPB081VWVN-RC CAD Model

Alternative Products

Description

The GRPB081VWVN-RC is a male pin header connector from Sullins Connector Solutions.

Positions: 8
Loading: All positions loaded
Connector Type: Header
Contact Type: Male pin
Pitch: 0.050" (1.27mm)
Contact Finish: Gold with a flash thickness
Mounting Type: Through hole
Shrouding: Unshrouded
Temperature Range: -40°C to 105°C
Current Rating: 1A
Compliance: REACH unaffected
