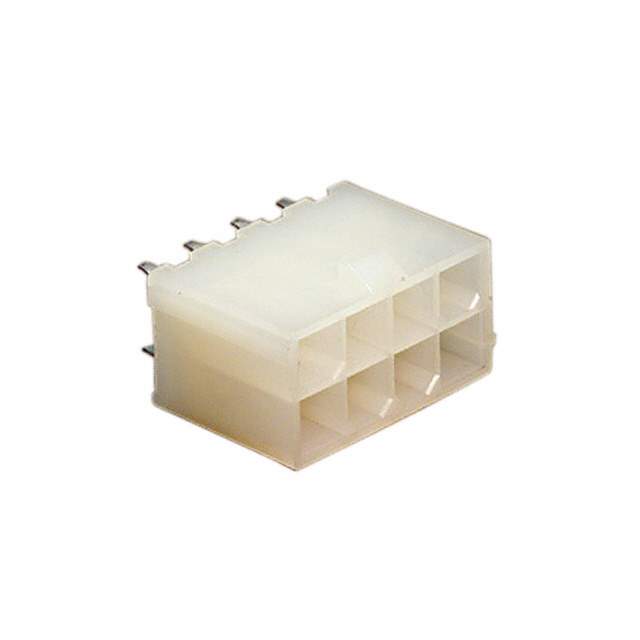

0039290083 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Fit Jr 5566
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66) , Nylon 6/6
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1345548-0039290083
Ultra Librarian 3D Model Ultra Librarian 0039290083 CAD Model

Description

The Molex 1345548-0039290083 is an 8-position header connector designed for board-to-cable/wire applications.

  • Pitch: 4.20mm
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Fastening Type: Shrouded, Locking Ramp
  • Contact Shape: Square
  • Flammability Rating: UL94 V-2
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Contact Material: Brass
  • Overall Contact Length: 0.559" (14.20mm)
  • Applications: General-Purpose, Industrial, and Telecommunications
  • Operating Temperature Range: Maximum
  • Compliance: RoHS Compliant
