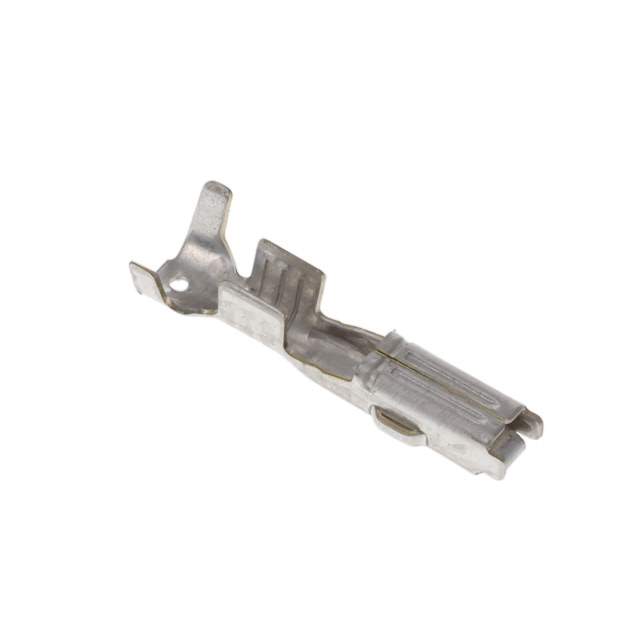

345806-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 14-20 AWG
Contact Finish Tin
Base Product Number 345806
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -345806-1-LSI,17-345806-1CT,-345806-1-SI,345806-1-ND,17-345806-1TR
Standard Package 6,000
Win Source Part Number 1333508-345806-1
Ultra Librarian 3D Model Ultra Librarian 345806-1 CAD Model

Description

The TE Connectivity AMP Connectors rectangular connector socket contact is a crimp type contact that has a wire gauge of 14-20 AWG.

  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 14-20 AWG
  • Packaging: Reel - TR
  • Standard Package: 6,000
  • Contact Finish: Tin
  • Contact Termination: Crimp
  • ECCN: EAR99
  • RoHS3 Compliant: Yes
  • Base Product Number: 345806
  • Other Part Numbers: -345806-1-LSI, 17-345806-1CT, -345806-1-SI, 345806-1-ND, and 17-345806-1TR
