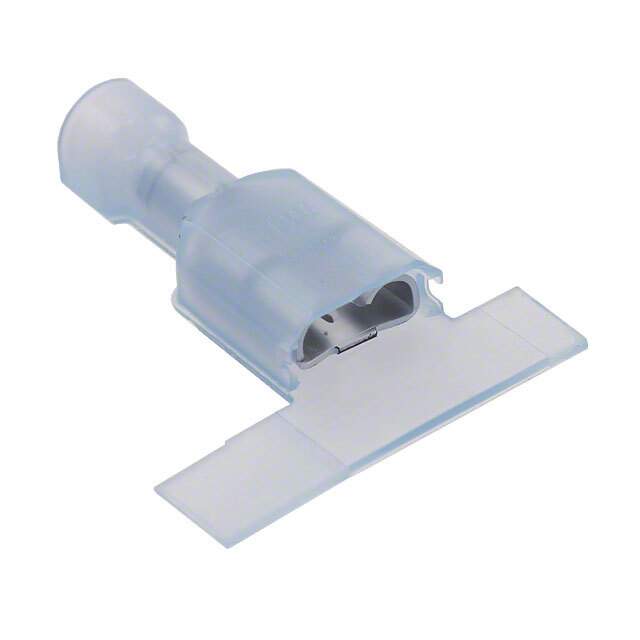

3-520116-2 Real Image
Same model may have multiple batches, images only for reference.

3-520116-2

Part No 3-520116-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Blue
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.160" (4.06mm)
Base Product Number 520116
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27825,A27825-ND,-403670466-SI-ND,A27826CT,-3-520116-2-SI,3-520116-2-ND,-403670466-SI,35201162,A27826TR,2266-3-520116-2TR
Standard Package 2,200
Win Source Part Number 1333831-3-520116-2
Ultra Librarian 3D Model Ultra Librarian 3-520116-2 CAD Model

Description

This female quick connect terminal is manufactured by TE Connectivity AMP Connectors.

  • Insulation: Fully Insulated
  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Wire Gauge: 14-16 AWG
  • Tab Width: 0.250 inches
  • Mounting: Free hanging (in-line)
  • Length Overall: 0.855 inches
  • Color: Blue
  • Packaging: Reel - TR
  • RoHS3: Compliant
  • ECCN: EAR99
