Same model may have multiple batches, images only for reference.

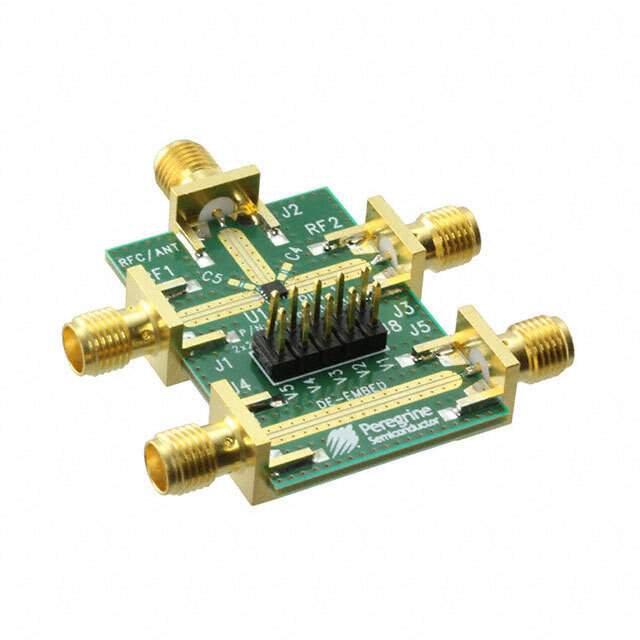

EK423422-01 Real Image
Same model may have multiple batches, images only for reference.

EK423422-01

Part No EK423422-01
Manufacturer pSemi
Catalog RF Evaluation and Development Kits, Boards
Description EVAL BOARD FOR PE423422 / PE423422 series Switch, SPDT Evaluation Board
Datasheet
EK423422-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr pSemi
Series UltraCMOS®, HaRP™
Package Box
Type Switch, SPDT
Frequency 100MHz ~ 6GHz
For Use With/Related Products PE423422
Supplied Contents Board(s)
Base Product Number EK423422
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names 1046-1127
Standard Package 1
Win Source Part Number 1131332-EK423422-01
Ultra Librarian 3D Model Ultra Librarian EK423422-01 CAD Model

Description

The pSemi UltraCMOS®, HaRP™ series development board with part number 1131332-EK423422-01 is a switch, SPDT type with a frequency range of 100MHz ~ 6GHz.

  • Package: Box
  • Used with/related to: PE423422
  • Standard Package: 1
  • Contains: Board(s)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8543.70.9860
  • Also known as: 1046-1127
  • Base product number: EK423422
