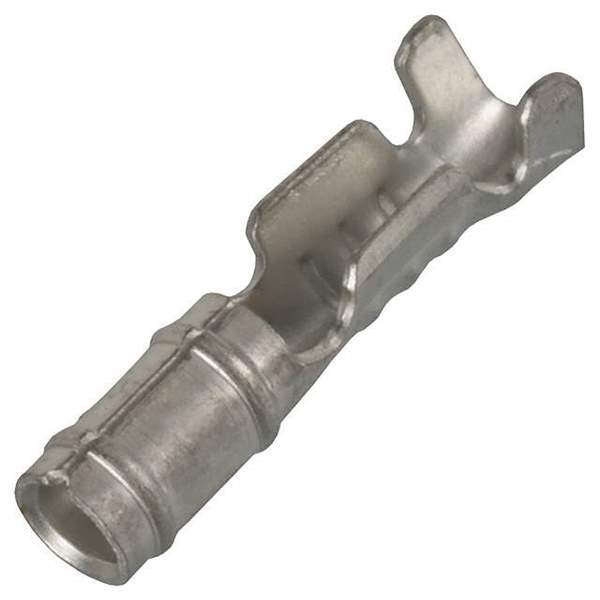

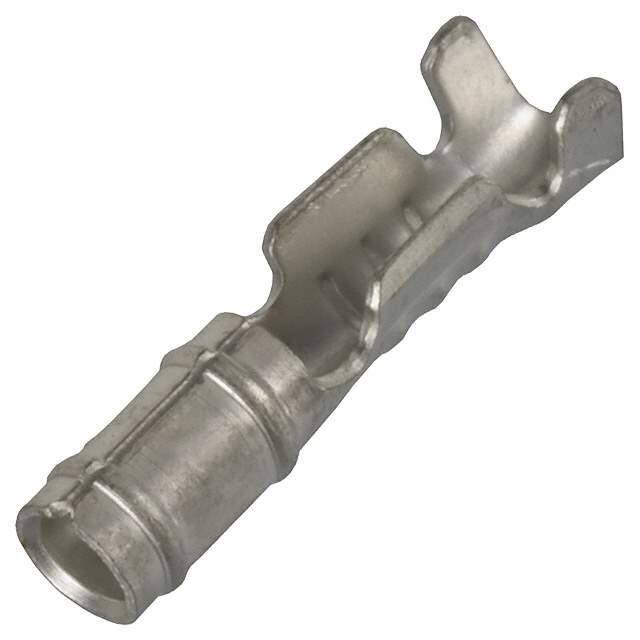

60986-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Barrel, Bullet Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.058" (1.47mm)
Wire Gauge 20-24 AWG
Length - Overall 0.395" (10.03mm)
Length - Barrel 0.155" (3.94mm)
Insulation Non-Insulated
Termination Crimp
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.090" (1.52mm ~ 2.29mm)
Base Product Number 60986
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 609861,2266-60986-1,-60986-1-SI,-2-42935-0001-SI-ND,-2-42935-0001-SI
Standard Package 1,000
Win Source Part Number 1333747-60986-1
Ultra Librarian 3D Model Ultra Librarian 60986-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333747-60986-1 is a crimped female receptacle socket designed for use in barrel, bullet connectors.

  • Contact Material: Phosphor Bronze
  • Insulation: Non-Insulated
  • Contact Finish: Tin
  • Wire Gauge: 20-24 AWG
  • Insulation Diameter: 0.060" to 0.090" (1.52mm ~ 2.29mm)
  • Overall Length: 0.395" (10.03mm)
  • Barrel Diameter: 0.058" (1.47mm)
  • Barrel Length: 0.155" (3.94mm)
  • Packaging: Bulk
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (Unlimited)
