0190700007

Part No 0190700007
Manufacturer Molex, LLC
Catalog Terminals

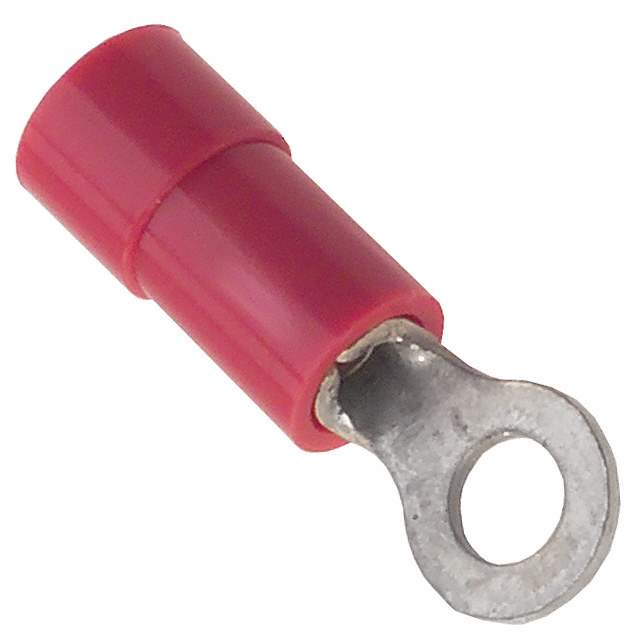

Description CONN RING CIRC 18-22AWG #4 CRIMP / Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer Molex
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 4 Stud
Thickness 0.028" (0.71mm)
Width - Outer Edges 0.235" (5.96mm)
Length - Overall 0.709" (18.01mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.145" (3.68mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 019070
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 19070-0007,WM18272,019070-0007-C,19070-0007-C,190700007,AA-220-04X,019070-0007,190-70-0007-C,190700007-C,WM18272-NDR,0190700007-C
Standard Package 1,000
Win Source Part Number 1333832-0190700007
Ultra Librarian 3D Model Ultra Librarian 0190700007 CAD Model

Description

The Molex 1333832-0190700007 is a female circular ring connector manufactured by Molex.

  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Package: Bulk
  • Insulation Diameter: 0.145"
