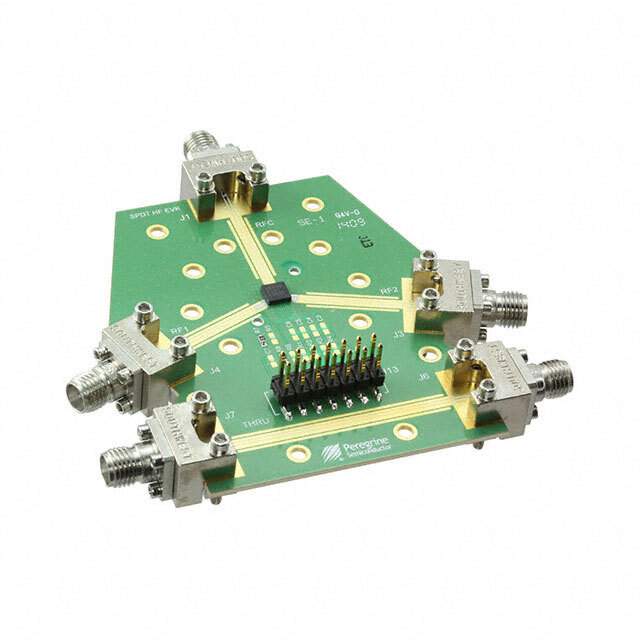

EK42522-03 Real Image
Same model may have multiple batches, images only for reference.

EK42522-03

Part No EK42522-03
Manufacturer pSemi
Catalog RF Evaluation and Development Kits, Boards
Description EVAL BOARD FOR PE42522 / PE42522 series Switch, SPDT Evaluation Board
Datasheet
EK42522-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr pSemi
Series UltraCMOS®, HaRP™
Package Box
Type Switch, SPDT
Frequency 9kHz ~ 26.5GHz
For Use With/Related Products PE42522
Supplied Contents Board(s)
Base Product Number EK42522
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names EK42522-02,1046-1128
Standard Package 1
Win Source Part Number 1178664-EK42522-03
Ultra Librarian 3D Model Ultra Librarian EK42522-03 CAD Model

Description

The pSemi UltraCMOS®, HaRP™ SPDT switch is designed for use with PE42522 and has a frequency range of 9kHz ~ 26.5GHz.

  • Supplied with: Board(s)
  • ECCN: EAR99
  • Package: Box
  • Standard Package: 1
  • Suitable for: RF evaluation and development kits, boards
  • HTSUS: 8543.70.9860
  • Base Product Number: EK42522
