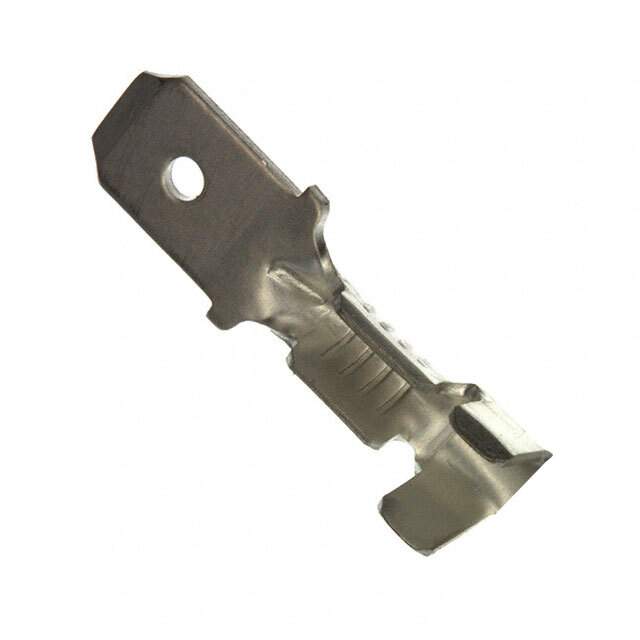

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.675" (17.15mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.120" (2.03mm ~ 3.05mm)
Base Product Number 42490
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27898TR,42490-3-ND,424903,A27898,-42490-3-SI,-42490-3-CSI,A27898-ND,A27898CT
Standard Package 5,000
Win Source Part Number 1333511-42490-3
Ultra Librarian 3D Model Ultra Librarian 42490-3 CAD Model

Description

TE Connectivity AMP Connectors Quick Connects are designed for use in a wide range of electronic applications.

  • Material: High-Quality Brass
  • Wire Gauge: 18-22 AWG
  • Insulated: Non-Insulated
  • Tab Width: 0.187 inches
  • Tab Thickness: 0.020 inches
  • Overall Length: 0.675 inches
  • Standard Package: 5,000
  • Mounting Style: Free-Hanging (In-Line)
  • Insulation Diameter: 0.080 to 0.120 inches
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • Widely Used: In the electronic industry due to their high-quality material and reliable performance.
