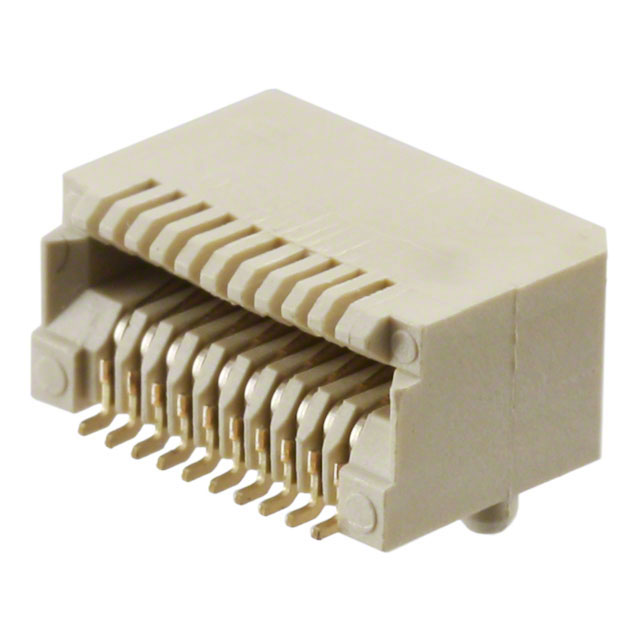

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel package
Connector Style Receptacle
Connector Type SFP+
Number of Positions 20
Mounting Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Win Source Part Number 760710-1888247-2
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Communications & Networking, Power Management
Family Name 1888247
Introduction Date March 25, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1888247-2 CAD Model

Description

The TE Connectivity AMP Connectors 760710-1888247-2 is a high-quality SFP+ connector designed for use in communications and networking, power management, and other applications.

  • Positions: 20
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Mounting: Surface Mount, Right Angle
  • Board Guide: Yes
  • Termination: Solder
  • Connector Style: Receptacle
  • Family: 1888247
  • Cross-Reference: 10099099-111LF, MECT-110-01-M-D, and MECT-110-01-M-D-RA1-TR
  • Introduction Date: March 25, 2009
  • Estimated EOL Date: 2026
