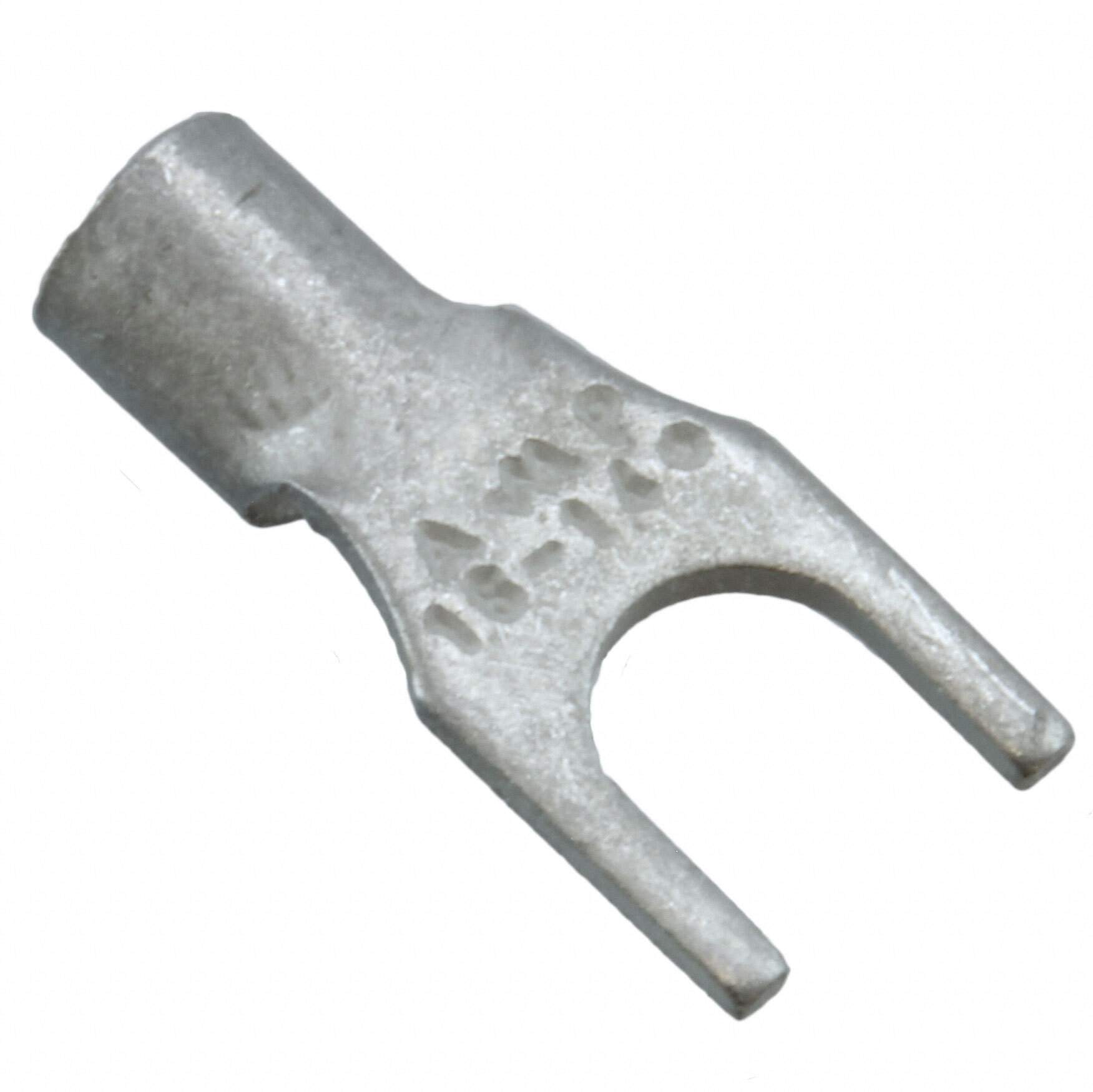

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Stud/Tab Size 8 Stud
Width - Outer Edges 0.248" (6.30mm)
Length - Overall 0.587" (14.91mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 13-17 AWG
Insulation Non-Insulated
Contact Finish Tin
Contact Material Copper
Length - Ring Center to Termination 0.280" (7.11mm)
Tongue Inside Opening 0.169" (4.29mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A119200,-130534-SI
Standard Package 1,000
Win Source Part Number 1333780-130534
Ultra Librarian 3D Model Ultra Librarian 130534 CAD Model

Description

TE Connectivity AMP Connectors 1333780-130534 is a spade connector with a crimp termination and a contact finish of tin.

  • Termination Type: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 13-17 AWG
  • Contact Material: Copper
  • Insulation: Non-Insulated
  • Stud/Tab Size: 8 Stud
  • Overall Length: 0.587 inches
  • Outer Edge Width: 0.248 inches
  • Tongue Inside Opening: 0.169 inches
  • Ring Center to Termination Length: 0.280 inches
  • Standard Package: 1,000
  • RoHS Compliant: Yes
