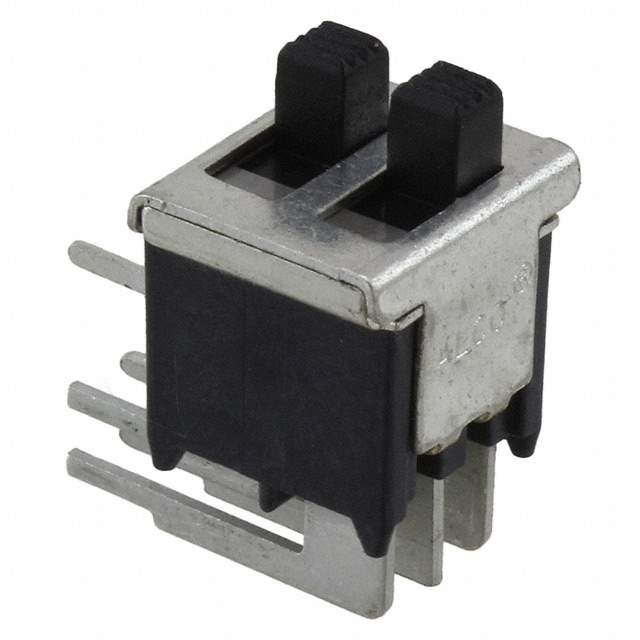

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series TSS
Packaging Bulk
Circuit SPDT x 2
Contact Timing Non-Shorting (BBM)
Switch Function On-Off-On
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Standard
Actuator Length 2.79mm
Contact Material Copper
Contact Finish Gold
Mounting Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Actuator Material Polyester
Switch Travel 3.05mm
Operating Temperature Range -20°C ~ 80°C
Mechanical Life 60,000 Cycles
Electrical Life 60,000 Cycles
Operating Force 150 ~ 600gf
Win Source Part Number 760689-1825014-2
Popularity Medium
Supply and Demand Status Limited
Family Name 1825014
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1825014-2 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches offers the 1825014-2 TSS series of electronic components.

  • Mounting Style: Through-hole, Right Angle
  • Circuit: SPDT x 2
  • Contact Finish: Gold
  • Contact Material: Copper
  • Operating Temperature Range: -20°C to 80°C
  • Electrical Life: 60,000 cycles
  • Mechanical Life: 60,000 cycles
  • Operating Force: 150 ~ 600gf
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Homepage: www.te.com
