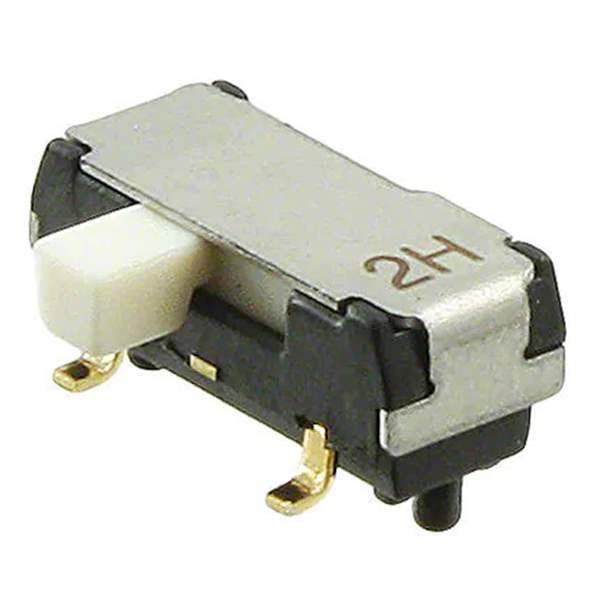

CL-SB-12B-11T

Part No CL-SB-12B-11T
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 200MA 12V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CL-SB
Package Tape & Reel
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper
Contact Finish Silver
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 153gf
Base Product Number CL-SB-12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376223-CL-SB-12B-11T
Ultra Librarian 3D Model Ultra Librarian CL-SB-12B-11T CAD Model

Description

The 1376223-CL-SB-12B-11T is a surface mount slide switch from Nidec Components Corporation's CL-SB series.

  • Series: CL-SB
  • Circuit: SPDT
  • Voltage Rating - DC: 12V
  • Mounting Type: Surface Mount, Right Angle
  • Termination Style: Gull Wing
  • Actuator Type: Standard
  • Actuator Length: 2.00mm
  • Switch Travel: 2.00mm
  • Current Rating: 200mA (DC)
  • Contact Material: Copper
  • Contact Finish: Silver
  • Operating Force: 153gf
  • Electrical Life: 10,000 Cycles
  • Product Status: Active
