Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MHS
Package Bulk
Circuit SP3T
Contact Timing Shorting (MBB)
Switch Function On-On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard
Actuator Length 4.50mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825256
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9050
Other Names 2266-1825256-6,-MSH133GR04-SI-ND,-MSH133GR04-LSI,450-1958,-MSH133GR04-SI,MSH133GR04,MHS133GRA04-ND,MHS133GRA04,-1825256-6-SI
Standard Package 450
Win Source Part Number 1155949-1825256-6
Ultra Librarian 3D Model Ultra Librarian 1825256-6 CAD Model

Description

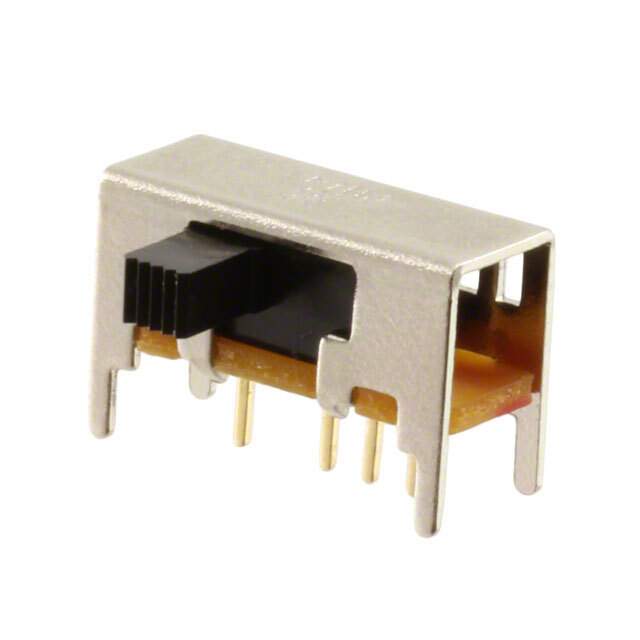

The MHS series slide switch by TE Connectivity ALCOSWITCH Switches is a SP3T circuit with a switch function of On-On-On. MHS series from TE Connectivity ALCOSWITCH Switches has a switch function of On-On-On.

  • Circuit: SP3T
  • Switch Function: On-On-On
  • Voltage Rating: 20V AC/DC
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Actuator Length: 4.50mm
  • Switch Travel: 2.00mm
  • Contact Timing: Shorting (MBB)
  • Electrical Life: 15,000 Cycles
  • Mechanical Life: 15,000 Cycles
  • Operating Force: 600gf
  • Mounting Type: Through-Hole, Right Angle
  • Temperature Range: -20°C to 85°C
  • Standard Package: 450
  • Packaging: Bulk
  • ECCN: EAR99
  • HTSUS: 8536.50.9050
