Same model may have multiple batches, images only for reference.

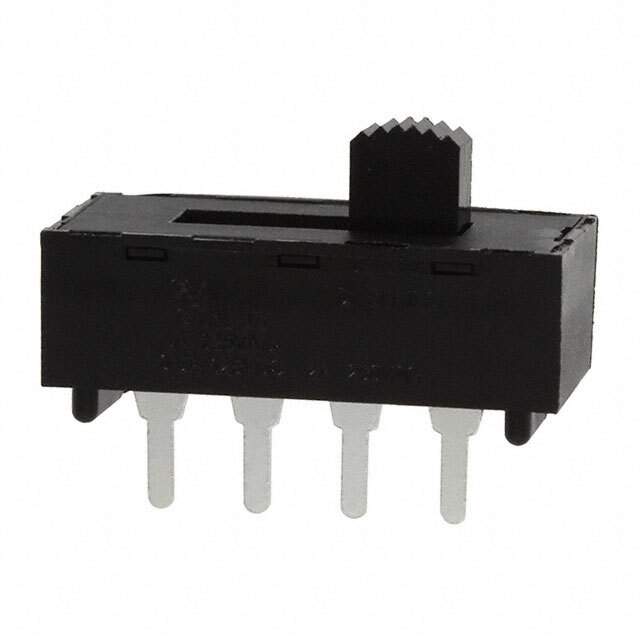

L103011MS02Q Real Image
Same model may have multiple batches, images only for reference.

L103011MS02Q

Part No L103011MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SP3T 4A 125V / Slide Switch SP3T Through Hole
Datasheet
L103011MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series L
Package Bulk
Circuit SP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.06mm
Electrical Life 10,000 Cycles
Base Product Number L103011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names CKN10978,L103011MS02Q-ND,*L103011MS02Q
Standard Package 1
Win Source Part Number 1226212-L103011MS02Q
Ultra Librarian 3D Model Ultra Librarian L103011MS02Q CAD Model

Description

The C&K L103011MS02Q slide switch is a high-quality component designed for use in a wide range of electronic devices.

  • Circuit: SP3T
  • Actuator Length: 5.08mm
  • Voltage Rating: 125 VAC and 28 VDC
  • Current Rating: 4A
  • Life: 10,000 cycles
