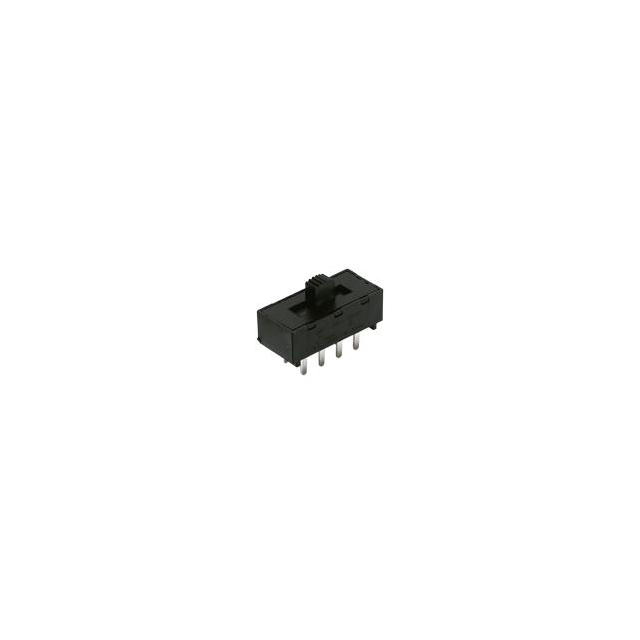

L201051MS02QE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series L
Package Bulk
Circuit DPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 7.92mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 3.81mm
Electrical Life 10,000 Cycles
Base Product Number L201051
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Standard Package 1
Win Source Part Number 1007935-L201051MS02QE
Ultra Librarian 3D Model Ultra Librarian L201051MS02QE CAD Model

Description

The C&K L201051MS02QE is a through hole slide switch with a DPST circuit and a termination style of PC Pin.

  • Circuit: DPST
  • Termination Style: PC Pin
  • Voltage Rating: 125VAC and 28VDC
  • Current Rating: 4A (AC/DC)
  • Electrical Life: 10,000 cycles
  • Mechanical Life: - cycles
  • Material: polyamide (PA66), Nylon 6/6
  • Temperature Range: -30°C to 65°C
  • Category: slide switches
