Same model may have multiple batches, images only for reference.

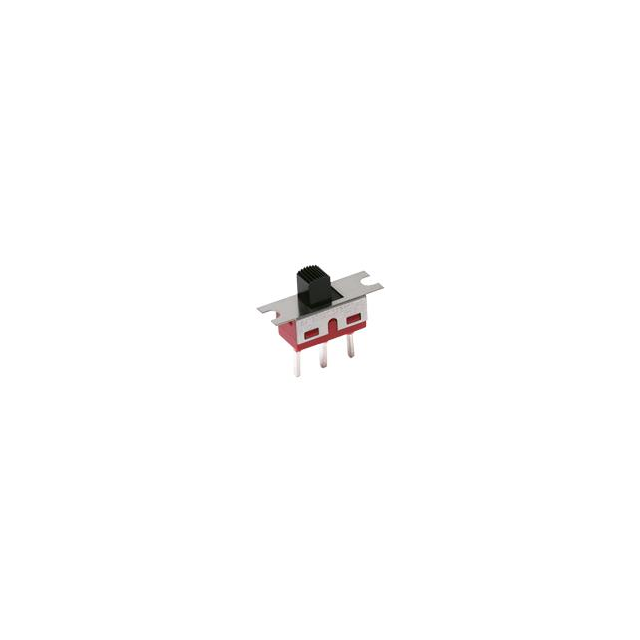

1203M2T3WQE2 Real Image
Same model may have multiple batches, images only for reference.

1203M2T3WQE2

Part No 1203M2T3WQE2
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 6A 120V / Slide Switch DPDT Through Hole
Datasheet
1203M2T3WQE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series 1000
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-Off-On
Current Rating (Amps) 6A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style Wire Wrap
Features Black Actuator, Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.16mm
Electrical Life 40,000 Cycles
Base Product Number 1203M2T3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names 2266-1203M2T3WQE2
Standard Package 40
Win Source Part Number 1231711-1203M2T3WQE2
Ultra Librarian 3D Model Ultra Librarian 1203M2T3WQE2 CAD Model

Description

The C&K 1203M2T3WQE2 is a slide switch with DPDT circuit configuration.

  • Termination Style: wire wrap
  • Package: bulk
  • Switch Function: on-off-on
  • Standard Package: 40
  • Actuator Type: standard
  • Actuator Length: 5.08mm
  • Voltage Rating - AC: 120 V
  • Voltage Rating - DC: 28 V
  • Current Rating (Amps): 6A (AC/DC)
  • Electrical Life: 40,000 cycles
  • Temperature Range - Operating: -30°C to 65°C
  • REACH: unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
