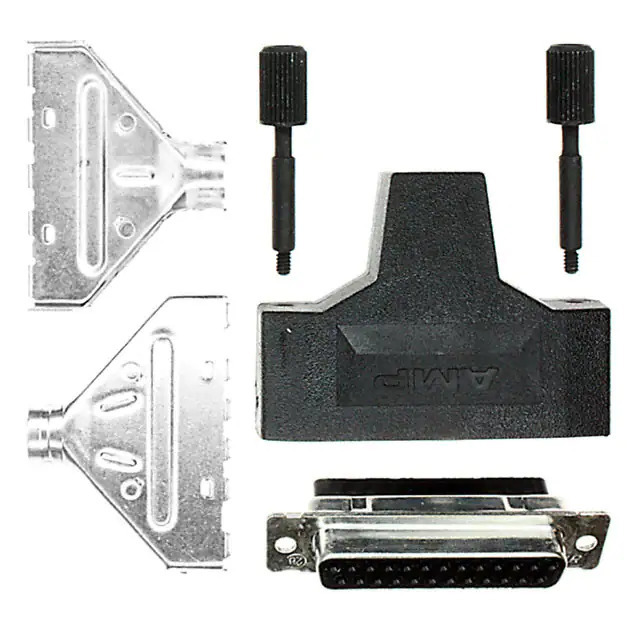

1658658-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Cable Side (4-40)
Features Backshell, Shielded
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 1658658
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1365160-1658658-1
Ultra Librarian 3D Model Ultra Librarian 1658658-1 CAD Model

Description

The TE Connectivity AMP Connectors D-Sub, D-Shaped Connector Housings are high-quality housings designed for D-Sub connectors.

  • Connector Type: Receptacle
  • Shell Size/Layout: 3 (DB, B)
  • Number of Positions: 25
  • Number of Rows: 2
  • Backshell: Yes
  • Shielded: Yes
  • Packaging: Bulk
  • Color: Black
  • Base Product Number: 1658658
  • HTSUS Code: 8538.90.8180
  • REACH: Vendor Undefined
  • ECCN: EAR99
