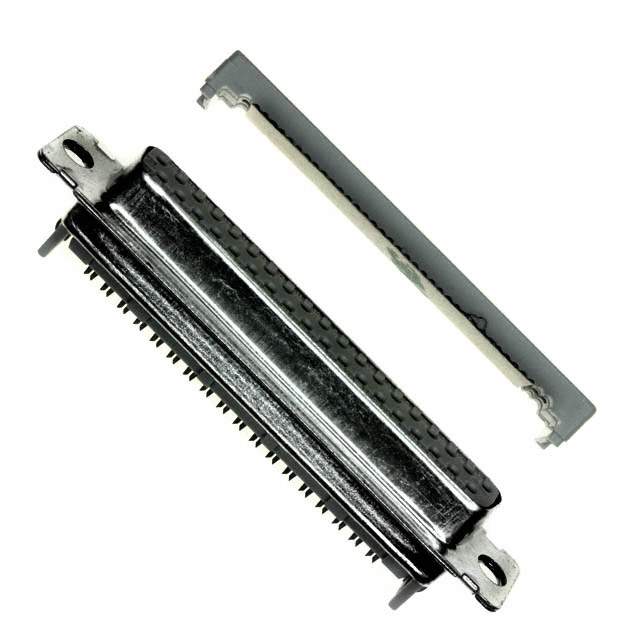

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr 3M
Series 8300
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Feed Through
Color Gray
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge 26-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 8337
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 51138430078,7100088862,DE-6100-0763-0,DE610007630,5113843007,DE610012861,UU004887392,4046719031276,4671903127,MFR37K,83376000
Standard Package 100
Win Source Part Number 1034108-8337-6000
Ultra Librarian 3D Model Ultra Librarian 8337-6000 CAD Model

Description

The 3M 8300 D-Sub Connector is a gray connector designed to connect ribbon cables.

  • Positions: 37
  • Feature: Feed through
  • Sockets: Female
  • Type: Receptacle
  • Contact Type: Signal
  • Rows: Two
  • Wire Gauge: 26-28 AWG
  • Current Rating: 1A
  • Package: Tray of 100
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
