Same model may have multiple batches, images only for reference.

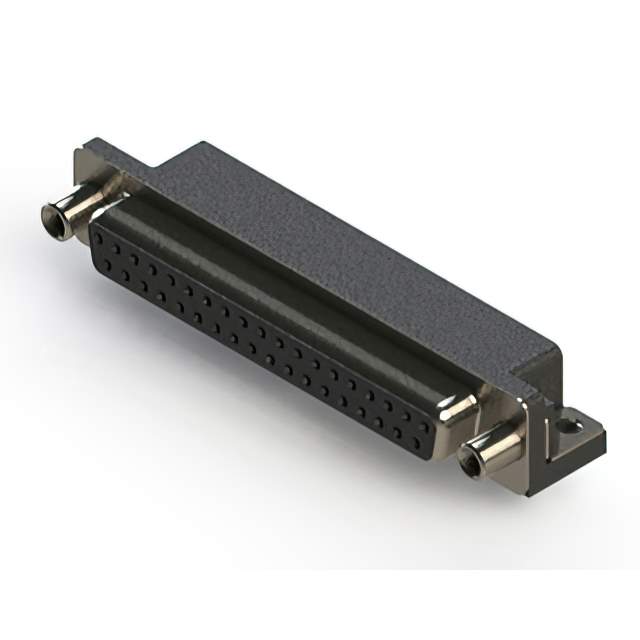

622-037-260-010 Real Image
Same model may have multiple batches, images only for reference.

622-037-260-010

Part No 622-037-260-010
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description 622 SERIES RIGHT ANGLE D-SUB REC / 37 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
622-037-260-010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 622
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Mating Side (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A per Contact
Backset Spacing 0.318" (8.08mm)
Features Mounting Brackets, Shielded
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 622-037
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-622-037-260-010
Standard Package 50
Win Source Part Number 1040984-622-037-260-010
Ultra Librarian 3D Model Ultra Librarian 622-037-260-010 CAD Model

Description

The product's Win Source Part Number is 1040984-622-037-260-010.

  • Series: 622
  • Number of Positions: 37
  • Color: Black
  • Features: Mounting Brackets, Shielded
  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Package: Tray
  • Connector Style: D-Sub
  • Operating Temperature: -55°C ~ 85°C
