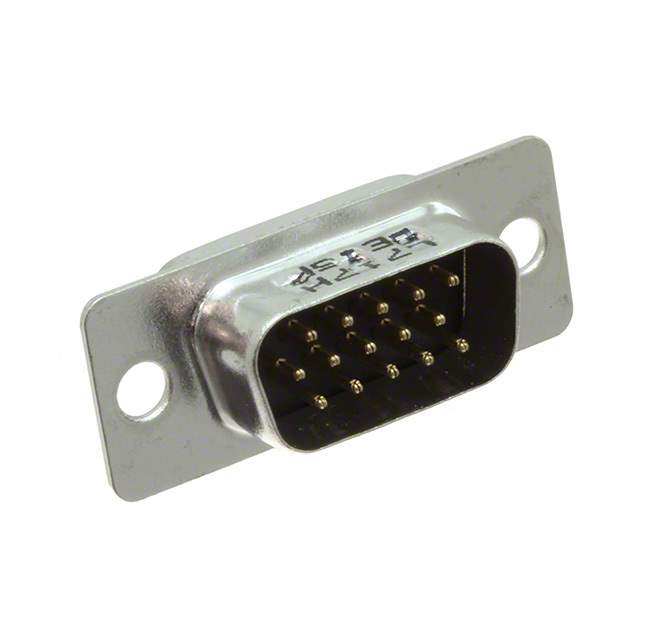

L717HDE15P Real Image
Same model may have multiple batches, images only for reference.

L717HDE15P

Part No L717HDE15P
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB HD PLUG 15P SLDR CUP / 15 Position D-Sub, High Density Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (Commercial Products)
Series HD
Package Tray
Connector Style D-Sub, High Density
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 3
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Grounding Indents
Voltage Rating 250V
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 155°C
Base Product Number L717HDE15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 50
Win Source Part Number 1201159-L717HDE15P
Ultra Librarian 3D Model Ultra Librarian L717HDE15P CAD Model

Description

The Amphenol ICC HD L717HDE15P is a high-density D-sub plug connector with a 15-position and 3-row configuration.

  • Grounding Indents: Yes
  • Mounting: Free Hanging (In-Line)
  • Termination: Solder Cup
  • Contact Form: Stamped
  • Series: HD
  • Shell Size: 1 (DE, E) High Density
  • Package Type: Tray
  • Standard Package Quantity: 50
  • Operating Temperature: -55°C to 155°C
  • Rated Current: 3A
  • Material: Steel
  • Plating: Tin Plated
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
