Same model may have multiple batches, images only for reference.

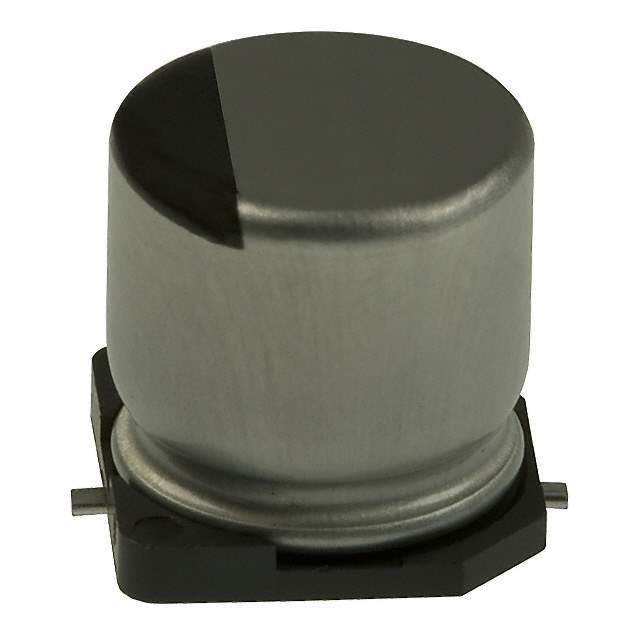

EEE-HA2A220UP Real Image
Same model may have multiple batches, images only for reference.

EEE-HA2A220UP

Part No EEE-HA2A220UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HA
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 93.5 mA @ 10 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-HA
Other Names EEEHA2A220UP,PCE4251CT,PCE4251DKR,PCE4251TR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307310-EEE-HA2A220UP
Ultra Librarian 3D Model Ultra Librarian EEE-HA2A220UP CAD Model

Description

The Panasonic Electronic Components EEE-HA2A220UP capacitor is a high-quality aluminum electrolytic capacitor designed for use in automotive applications.

  • Capacitance: 22 µF
  • Voltage Rating: 100 V
  • Lifetime: 1000 hours @ 105°C
  • Package: Radial, can-SMD
  • Mounting: SMD (SMT)
  • Series: HA
  • AEC-Q200 Rated: Yes
  • Polarization: Polar
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height: 0.402" (10.20mm)
  • Operating Temperature: -40°C to 105°C
