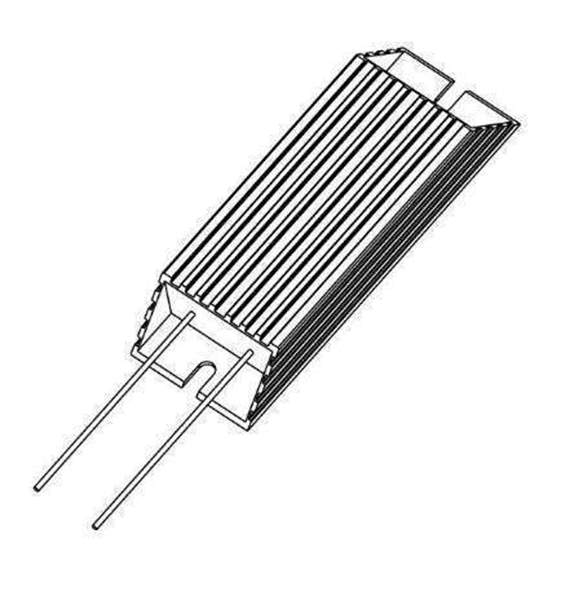

1-2176505-9 TE Connectivity
Same model may have multiple batches, images only for reference.

1-2176505-9

Part No 1-2176505-9
Manufacturer TE Connectivity
Catalog Wirewound Resistors
Description Wirewound Resistors - Chassis Mount CJP 120W 220R 5% Lead
Datasheet
1-2176505-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304737-1-2176505-9
Manufacturer TE Connectivity
Category Wirewound Resistors - Chassis Mount
Resistance (Ohms) 220 Ohms
Power Rating 120 W
Tolerance 5 %
Temperature Coefficient 200 PPM / C
Length 190 mm
Width 40 mm
Height 20 mm
Mounting Style Chassis Mount
Ultra Librarian 3D Model Ultra Librarian 1-2176505-9 CAD Model

Description

Wirewound Resistors - Chassis Mount CJP 120W 220R 5% Lead
