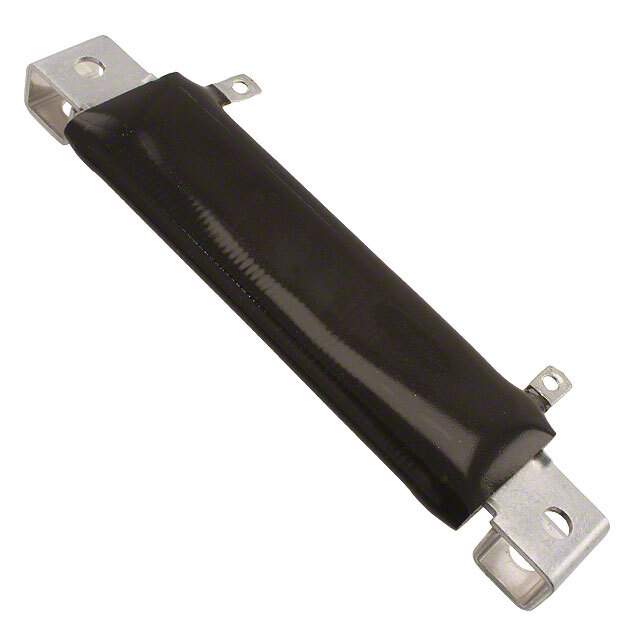

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Ohmite
Series Stackohm® 250
Package Bulk
Resistance 50 Ohms
Tolerance ±5%
Power (Watts) 55W
Composition Wirewound
Temperature Coefficient ±260ppm/°C
Temperature Range - Operating -55°C ~ 350°C
Coating, Housing Type Vitreous Enamel Coated
Mounting Feature Flange Braces, Right Angle
Dimension 3.500" L x 1.000" W (88.90mm x 25.40mm)
Height - Seated (Max) 0.563" (14.29mm)
Lead Style Solder Lugs
Package / Case Radial, Flat Oval
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names Q4519351
Standard Package 1
Win Source Part Number 1058321-F55J50RE
Ultra Librarian 3D Model Ultra Librarian F55J50RE CAD Model

Description

The Ohmite 1058321-F55J50RE is a Chassis Mount Resistor from the Stackohm® 250 series.

  • Type: Wirewound resistor
  • Resistance: 50 Ohms
  • Power Rating: 55W
  • Tolerance: ±5%
  • Temperature Coefficient: ±260ppm/°C
  • Package Type: Radial, Flat Oval
  • Packaging: Bulk
  • Height: 0.563” (14.29mm)
  • Dimension: 3.500” L x 1.000” W (88.90mm x 25.40mm)
  • Operating Temperature Range: Between -55°C to 350°C
  • Popularity: High popularity
  • ECCN: EAR99
  • HTSUS Code: 8533.29.0000
