Same model may have multiple batches, images only for reference.

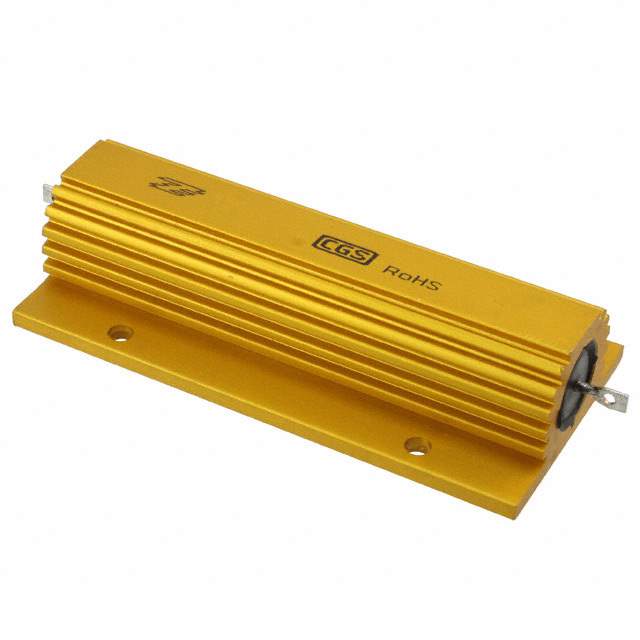

HSC1502R2J Real Image
Same model may have multiple batches, images only for reference.

HSC1502R2J

Part No HSC1502R2J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 2.2 OHM 5% 150W / 2.2 Ohms ±5% 150W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 150W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 3.858" L x 1.870" W (98.00mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSC150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1-1630012-9-ND,A102371,1-1630012-9,116300129
Standard Package 5
Win Source Part Number 1036472-HSC1502R2J
Ultra Librarian 3D Model Ultra Librarian HSC1502R2J CAD Model

Description

The HSC1502R2J is a wirewound chassis mount resistor with a resistance of 2.2 Ohms and a power of 150W manufactured by TE Connectivity Passive Product.

  • Resistance: 2.2 Ohms
  • Power: 150W
  • Temperature Coefficient: ±50ppm/°C
  • Tolerance: ±5%
  • Dimension: 3.858" L x 1.870" W (98.00mm x 47.50mm)
  • Height: 1.024" (26.00mm)
  • Mounting: Flanges
  • Coating: Aluminum
  • Housing Type: Aluminum
  • Series: HS and CGS series
  • Packaging: Bulk
  • REACH Affected: No
  • ECCN: EAR99
