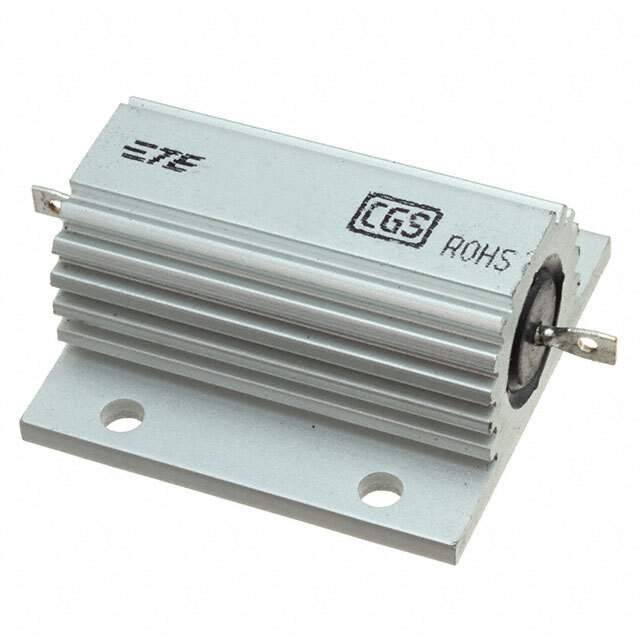

THS752R2J Real Image
Same model may have multiple batches, images only for reference.

THS752R2J

Part No THS752R2J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 2.2 OHM 5% 75W  /  2.2 Ohms ±5% 75W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series THS, CGS
Package Tray
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 75W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.929" L x 1.870" W (49.00mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number THS75
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1879363-2,1879363-2-ND,THS752R2J-ND,A132089
Standard Package 10
Win Source Part Number 970795-THS752R2J
Ultra Librarian 3D Model Ultra Librarian THS752R2J CAD Model

Description

The TE Connectivity Passive Product THS75 series resistor is a chassis mount resistor with a power of 75W.

  • Series: THS75
  • Mount: Chassis Mount
  • Power: 75W
  • Resistance: 2.2 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Lead Style: Solder Lugs
  • Mounting Feature: Flanges
  • Composition: Wirewound
  • Coating: Aluminum
  • Housing Type: Axial, Box
  • Operating Temperature Range: -55°C to 200°C
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • REACH: Unaffected
  • HTSUS: 8533.29.0000
