Same model may have multiple batches, images only for reference.

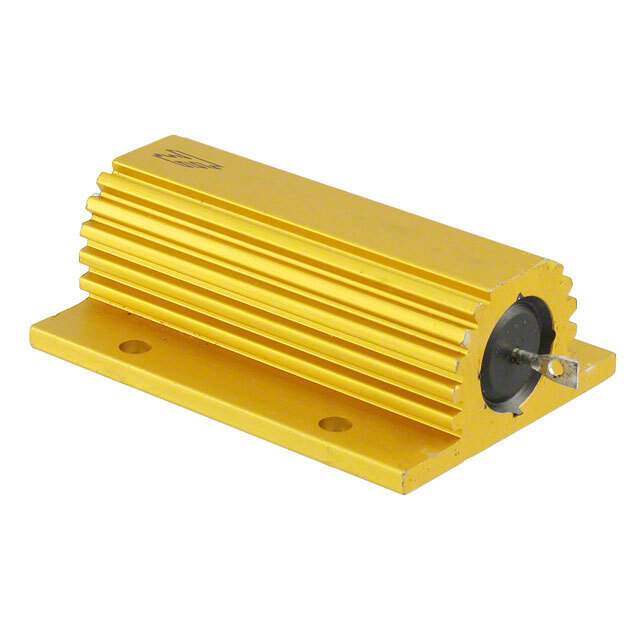

HSC10020RJ Real Image
Same model may have multiple batches, images only for reference.

HSC10020RJ

Part No HSC10020RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 20 OHM 5% 100W / 20 Ohms ±5% 100W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 20 Ohms
Tolerance ±5%
Power (Watts) 100W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.579" L x 1.870" W (65.50mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1-1625999-7,HSC10020RJ-ND,A127589
Standard Package 10
Win Source Part Number 1116178-HSC10020RJ
Ultra Librarian 3D Model Ultra Librarian HSC10020RJ CAD Model

Description

The TE Connectivity Passive Product HSC10020RJ is a wirewound chassis mount resistor that belongs to the HS and CGS series.

  • Manufacturer: TE Connectivity Passive Product
  • Series: HS and CGS
  • Type: Wirewound, Chassis Mount
  • Resistance: 20 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 100W
  • Package: Bulk
  • Lead Style: Solder Lugs
  • Temperature Range: -55°C to 200°C
  • Package: Box
  • Standard Package: 10
  • Dimensions: 2.579" L x 1.870" W (65.50mm x 47.50mm)
  • Coating/Housing: Aluminum
  • Configuration: Axial
  • Application: Chassis Mount
