Same model may have multiple batches, images only for reference.

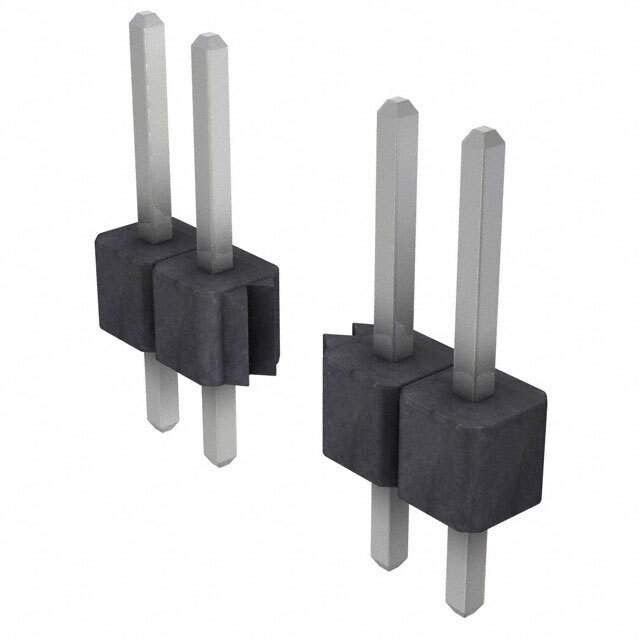

PTC12SAAN Real Image
Same model may have multiple batches, images only for reference.

PTC12SAAN

Part No PTC12SAAN
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HEADER .100 SINGL STR 12POS
Datasheet
PTC12SAAN Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Sullins Connector Solutions
Packaging Bulk
Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.450" (11.43mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic, Polyester
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 1105748-PTC12SAAN
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTC12SAAN CAD Model

Description

The PTC12SAAN from Sullins Connector Solutions is an obsolete header connector with a 12-position, 1-row configuration.

  • Positions: 12
  • Rows: 1
  • Mounting: Through-Hole
  • Contact Gender: Male Pin
  • Contact Finish: Tin
  • Pitch: 2.54mm
  • Current Rating: 3A
  • Materials: UL94 V-0 rated thermoplastic and polyester
