Same model may have multiple batches, images only for reference.

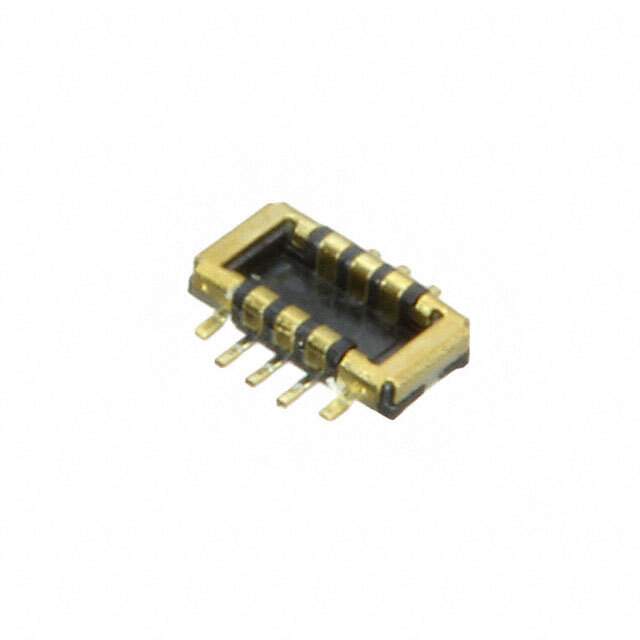

5050700610 Real Image
Same model may have multiple batches, images only for reference.

5050700610

Part No 5050700610
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 6POS SMD GOLD / 6 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 505070
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 6
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.6mm
Height Above Board 0.019" (0.48mm)
Base Product Number 505070
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 907078-5050700610
Ultra Librarian 3D Model Ultra Librarian 5050700610 CAD Model

Description

The SlimStack 505070 series is a 6-position edge type mezzanine connector designed for board to board applications.

  • Connector Type: plug
  • Contact Type: outer shroud
  • Pitch: 0.014" (0.35mm)
  • Features: solder retention
  • Rows: 2
  • Mated Stacking Height: 0.6mm
  • Mounting: surface mount
  • Height Above Board: 0.019" (0.48mm)
  • Packaging: tape & reel
  • HTSUS: 8536.69.4040
  • Product Status: obsolete
