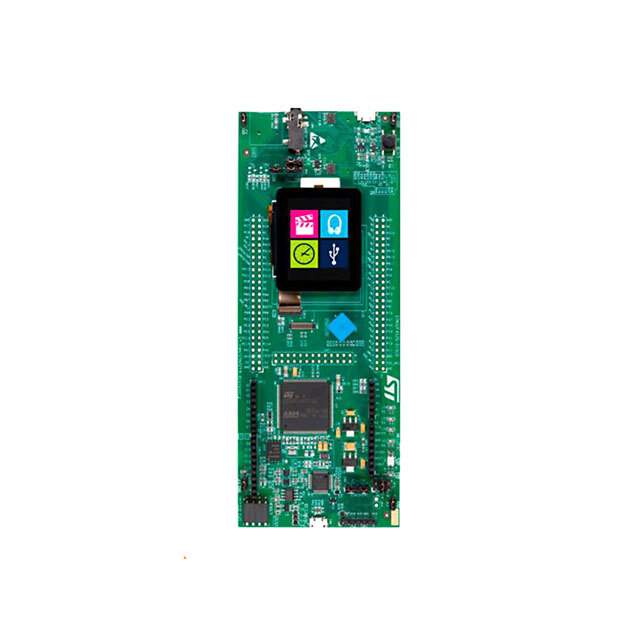

The STM32F412G-DISCO is a discovery kit from STMicroelectronics that provides a complete solution for users to explore the capabilities of the STM32F4 series microcontrollers. This development board is based on the STM32F412ZG MCU, which belongs to the high-performance STM32F4 family with the ARM Cortex-M4 processor. It is an ideal starting point for creating high-performance embedded systems with a focus on small form factors and low power consumption.

Key Features

• Core: ARM Cortex-M4 with FPU and DSP instructions, running at up to 100 MHz.
• Memory: 1 Mbyte of Flash memory and 256 Kbytes of SRAM.
• Display: On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, virtual COM port, and debug port.
• Audio: SAI audio DAC, stereo audio jack that supports headset with microphone.
• Connectivity: USB OTG FS, user and reset push-buttons, one user LED.
• Expansion: Flexible power-supply options: ST-LINK USB VBUS or external sources. Arduino Uno V3 connectivity support and ST morpho extension pin headers for full access to all STM32 I/Os.
• Sensors: On-board gyroscope and e-compass, with provision for additional sensors via expansion connectors.

Development Ecosystem

The STM32F412G-DISCO kit is fully supported by a range of development tools including IAR, Keil, and GCC-based IDEs. The STM32CubeF4 MCU Package includes the STM32Cube Hardware Abstraction Layer (HAL), an extensive set of examples, and direct access to the ARM® mbed™ online resources.

Applications

This discovery kit is suitable for a wide array of applications, such as consumer electronics, industrial automation, IoT devices, smart home applications, medical devices, and much more. Its high computation power and rich connectivity options make it a versatile choice for developers and engineers looking to prototype and build sophisticated systems.

Additional Resources

For further information, datasheets, and technical resources, developers can visit the STMicroelectronics website or access the STM32F4 Discovery series community forums for support and collaboration.
