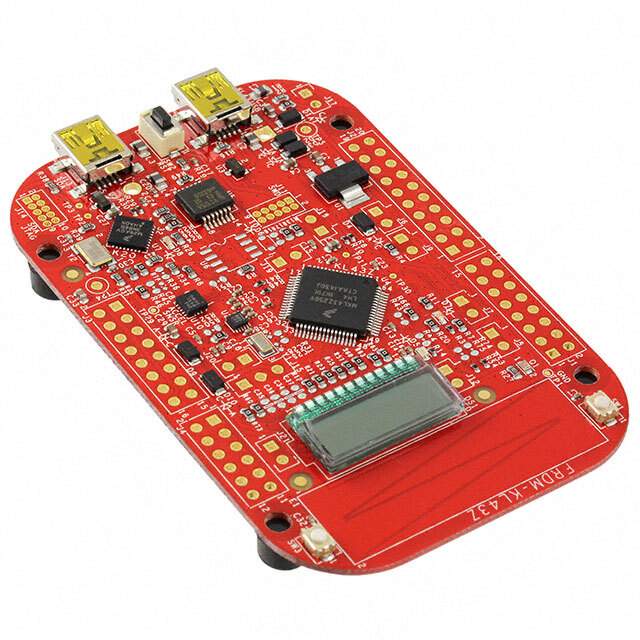

The FRDM-KL43Z is a versatile development platform from NXP, designed to showcase the capabilities of the energy-efficient Kinetis L series KL43Z MCUs. It is an excellent starting point for developers looking to explore the features of the ARM® Cortex®-M0+ based microcontrollers for applications requiring low power consumption and high performance.

Key Features

• MCU Core: ARM® Cortex®-M0+ processor running at up to 48MHz, offering a balanced blend of control efficiency and power conservation.
• Memory: Comes with 256KB flash memory, 32KB RAM, and 32KB of flexible memory, providing ample space for complex applications and data storage.
• Capacitive Touch Sensing: Integrated capacitive touch slider, providing a ready-to-use interface for user input without the need for additional components.
• Connectivity: Features a full-speed USB 2.0 On-The-Go (OTG) controller for versatile connections and the ability to act as either a device or a host for greater flexibility in USB applications.
• Onboard Accelerometer and Magnetometer: Built-in sensors for motion tracking and detection, enabling the development of interactive and intelligent applications.
• Arduino R3 Compatible: The development platform is designed to be compatible with Arduino R3 shields, providing access to a wide range of expansion boards for additional functionality.
• Flexible Power Options: The FRDM-KL43Z can be powered via USB or an external source, making it adaptable for various testing and development environments.

Development Support

NXP provides comprehensive development support for the FRDM-KL43Z platform with a range of software tools, including the MCUXpresso IDE and SDK, IAR, and Keil development environments. The platform is also supported by the mbed™ online development platform for rapid prototyping and development. With its integrated OpenSDA debug interface, developers can easily program and debug their applications without the need for additional hardware.

Applications

The FRDM-KL43Z is ideal for a wide range of applications, including but not limited to IoT devices, wearables, energy management systems, and portable medical devices. Its low power consumption and rich set of features make it particularly well-suited for battery-powered and power-sensitive applications.
