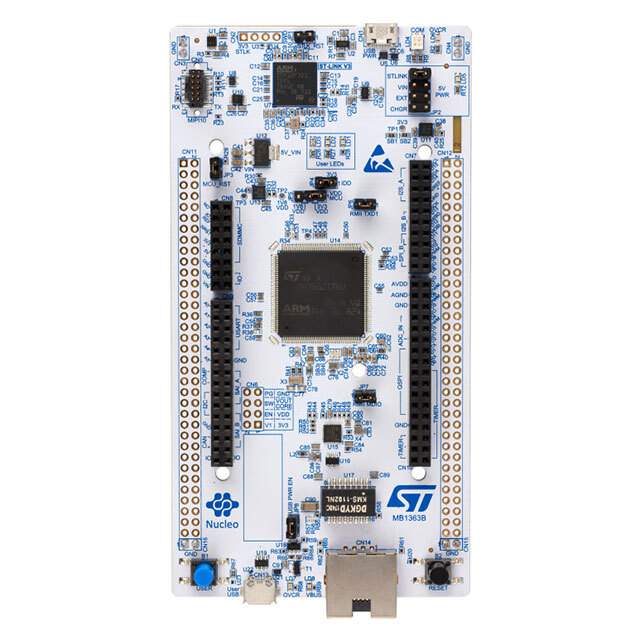

Product Overview: NUCLEO-H745ZI-Q

The NUCLEO-H745ZI-Q is a state-of-the-art development board from STMicroelectronics, designed for high-performance applications. This board is a part of the STM32 Nucleo series, which provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features.

Key Features

• Microcontroller: STM32H745ZI-Q dual-core microcontroller, which includes an ARM Cortex-M7 core (with double-precision floating point unit) operating at up to 480 MHz and a Cortex-M4 core operating at up to 240 MHz.
• Memory: The board comes with 2 Mbytes of Flash memory and 1 Mbyte of RAM, providing ample space for complex applications.
• Connectivity: For connectivity, it includes Ethernet compliant with IEEE-802.3-2002, and support for a wide range of other communication interfaces, such as three I2C, three USART, two UART, SPI, CAN, and SAI.
• Debugging: On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port.
• Compatibility: Comprehensive free software libraries and examples available with the STM32Cube MCU Package.
• Expansion: Arduino Uno V3 connectivity support and ST morpho extension pin headers for full access to all STM32 I/Os, which allows for easy expansion with a wide choice of specialized shields.
• Power Management: Flexible power-supply options: ST-LINK USB VBUS or external sources.
• LEDs: Three user LEDs and two push-buttons: one user and one reset.

Applications

The NUCLEO-H745ZI-Q is ideal for a wide range of applications, including high-performance embedded systems, real-time applications, complex algorithm implementations, industrial control, robotics, and aerospace. Its dual-core architecture enables efficient handling of complex tasks, while its connectivity options make it suitable for IoT projects and smart devices.

Conclusion

The NUCLEO-H745ZI-Q development board is a powerful tool for developers looking to leverage the performance of the STM32H7 series microcontrollers. With its robust features, extensive connectivity, and dual-core processing, it is well-suited for both prototyping and product development in demanding applications.
