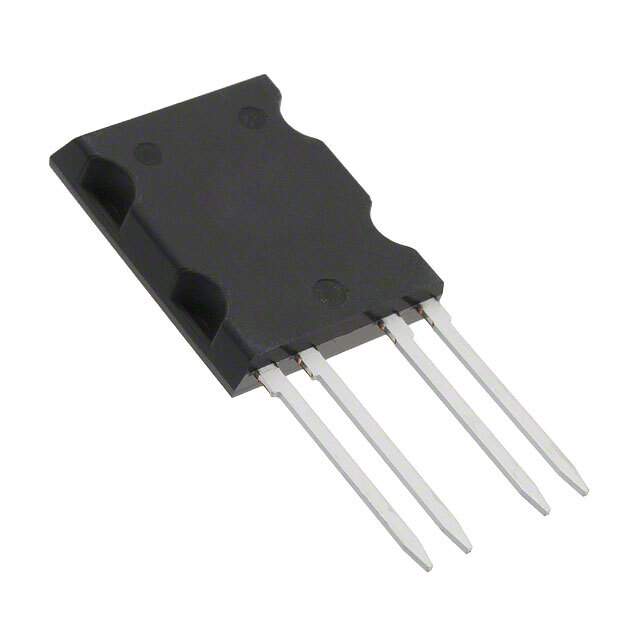

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr IXYS Integrated Circuits Division
Series CPC, OptoMOS®
Package Tube
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 9 A
On-State Resistance (Max) 50 mOhms
Termination Style PC Pin
Package / Case ISOPLUS264™
Supplier Device Package ISOPLUS264™
Base Product Number CPC1709
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Other Names CLA280
Standard Package 25
Win Source Part Number 1180538-CPC1709J
Ultra Librarian 3D Model Ultra Librarian CPC1709J CAD Model

Description

IXYS' CPC1709J is a solid-state relay that is part of the CPC OptoMOS series.

  • Series: CPC OptoMOS
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 9A
  • Mounting: Through-Hole
  • Package: ISOPLUS264
