Same model may have multiple batches, images only for reference.

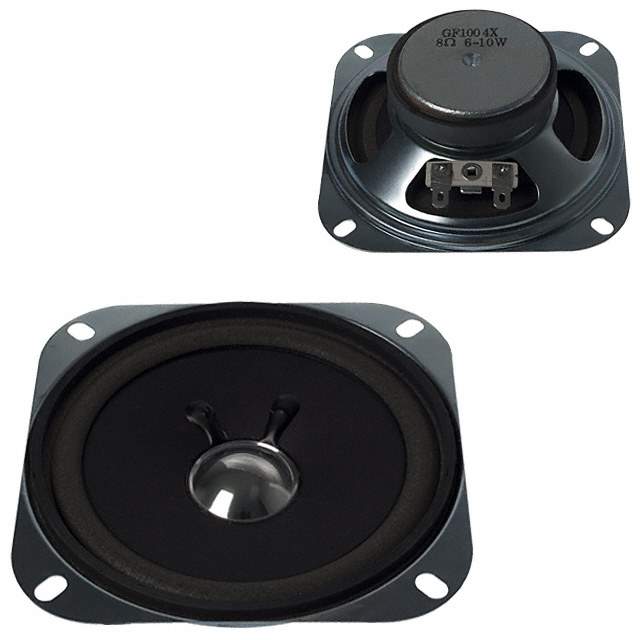

GF1004 Real Image
Same model may have multiple batches, images only for reference.

GF1004

Part No GF1004
Manufacturer CUI Inc.
Catalog Speakers
Description SPEAKER 8OHM 6W TOP PORT 93DB / Speakers Ferrite 145Hz 10W 93dBA 8Ohm Square Solder Pad
Datasheet
GF1004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Series GF
Packaging Bulk
Type Magnetic
Frequency Range 145Hz ~ 17kHz
Impedance 8 Ohm
Sound Pressure Level (SPL) 93dB
Power - Rated 6W
Power - Max 10W
Port Location Top
Shape Round, Square Frame
Material - Cone Paper
Material - Magnet Ferrite
Termination Solder Eyelet(s)
Dimension 4.032" L x 4.032" W (102.40mm x 102.40mm)
Height - Seated (Maximum) 1.437" (36.50mm)
Win Source Part Number 774300-GF1004
Popularity Medium
Supply and Demand Status Balance
Family Name GF1004
Introduction Date October 20, 2006
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian GF1004 CAD Model

Description

The CUI Inc. GF1004 is a square frame, magnetic audio product with an impedance of 8 Ohm and a sound pressure level (SPL) of 93dB.

  • Impedance: 8 Ohm
  • Sound Pressure Level (SPL): 93dB
  • Maximum Power: 10W
  • Rated Power: 6W
  • Frequency Range: 145Hz to 17kHz
  • Dimension: 4.032" L x 4.032" W (102.40mm x 102.40mm)
  • Cone Material: paper
  • Magnet Material: ferrite
  • Port Location: top
  • Soldering: eyelets
  • Packaging: bulk
  • Popularity: Medium
  • Introduction Date: October 20, 2006
  • Estimated EOL Date: 2028
