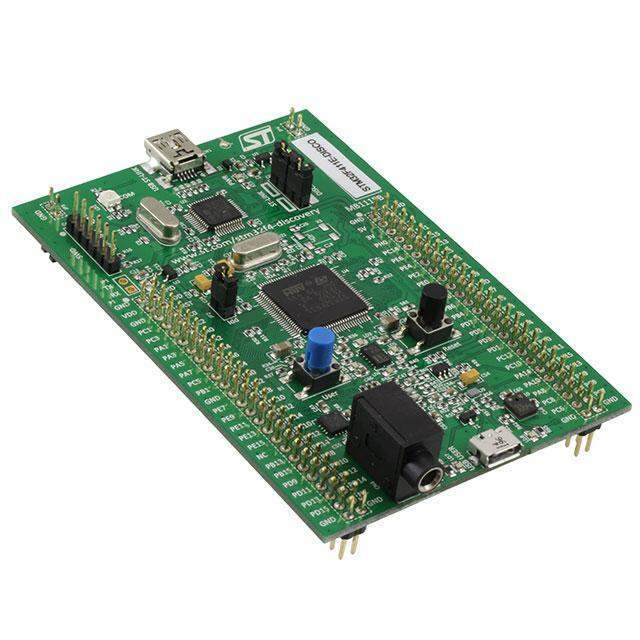

STM32F411E-DISCO - STMicroelectronics Discovery Kit

The STM32F411E-DISCO Discovery Kit from STMicroelectronics is a feature-packed development tool that facilitates easy application development and rapid prototyping with the STM32F411 microcontroller. This microcontroller is part of the STM32F4 series, which are high-performance ARM Cortex-M4 based processors, well-suited for a wide range of applications including motor drives, medical equipment, industrial applications, and consumer electronics.

Key Features

• STM32F411VET6 microcontroller: Boasting a 100 MHz ARM Cortex-M4 core with a floating-point unit, this MCU offers a perfect balance between performance and power consumption.
• On-board ST-LINK/V2: This embedded in-circuit debugger and programmer for the STM32 MCU family includes a virtual COM port interface, which simplifies program development and debugging.
• Comprehensive free software libraries and examples: Available through the STM32Cube MCU Package or ST's HAL (Hardware Abstraction Layer), these resources support quick development and include firmware functions.
• 6-axis MEMS accelerometer and gyroscope: The on-board LSM6DS0TR sensor allows for the implementation and testing of motion-sensing applications.
• Audio DAC with integrated class D speaker driver: The integrated CS43L22 provides high-quality audio output, enhancing applications requiring sound.
• User-friendly interfaces: Includes an array of LEDs, a two-button user interface, and extension headers for full access to all STM32 I/Os for easy connection to peripheral hardware.
• USB OTG: The microUSB connector allows the board to act as a host or a device, broadening the range of potential applications.

Development Support

The STM32F411E-DISCO Discovery Kit is supported by a range of development environments including IAR, Keil, and GCC-based IDEs. STMicroelectronics provides extensive support through their software HAL library, as well as direct support from their community and forums. With this Discovery Kit, developers can quickly bring their ideas to life and easily migrate from prototype to production.

Whether you're a seasoned developer or just starting out, the STM32F411E-DISCO Discovery Kit is a versatile and cost-effective solution for exploring the capabilities of the STM32F411 MCU and developing a wide array of applications.
