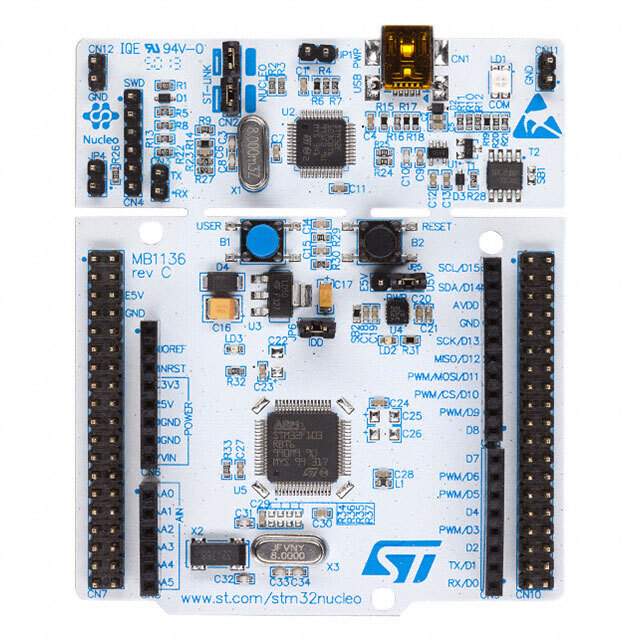

STMicroelectronics NUCLEO-L152RE Overview

The NUCLEO-L152RE from STMicroelectronics is a powerful and versatile development board that integrates the STM32L152RE microcontroller, suitable for a wide range of applications. This board is part of the STM32 Nucleo series, which is designed to provide a flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller.

Main Features of the NUCLEO-L152RE

• STM32 microcontroller in LQFP64 package: The board features an STM32L152RE MCU which operates at a frequency of up to 32 MHz. It is equipped with 512 KB of Flash memory and 80 KB of SRAM, providing ample space for complex applications.
• Arduino Uno V3 connectivity: Support for Arduino Uno V3 shields expands the functionality of the board, allowing users to utilize a wide range of existing shields for rapid prototyping.
• ST Morpho extension pin headers: The inclusion of ST Morpho headers opens the door to full access to all STM32 I/Os, making it easy to expand the functionality of the development platform.
• Integrated ST-LINK/V2-1 debugger/programmer: The onboard ST-LINK/V2-1 simplifies the programming and debugging process, eliminating the need for separate probe tools.
• Comprehensive free software libraries and examples: The board is supported by a wide range of software, including the STM32Cube MCU Package, as well as various integrated development environments (IDEs) like Keil, IAR, and the ARM® mbed™ online IDE.

Target Applications

The NUCLEO-L152RE is particularly well-suited for applications requiring low power consumption, such as wearable devices, IoT sensor nodes, and energy-efficient smart home controllers. Its rich set of peripherals, including ADCs, DACs, timers, and communication interfaces (SPI, I2C, UART), makes it an ideal choice for a multitude of embedded system applications.

Additional Features

The board includes an LED to provide feedback, a user button, and a reset button to create a user-friendly development environment. It is also equipped with a USB connector for power and PC communication, making it easy to develop and debug code in a convenient manner.

Overall, the NUCLEO-L152RE is a cost-effective and flexible solution for developers looking to explore the features of the STM32L series microcontrollers and create their prototypes with ease.
